EC1216

BD4000 Series

Privacy Lock for Barn Doors

Drive-in bolt installs inside the jamb with strike inside the door for a unique, decorative way of maintaining privacy with a sliding barn door

Features

  • Exceeded ANSI/BHMA 156.36 Grade 3 quality standards for Bolt Strength and Cycle Testing
  • A variety of decorative trim escutcheons with thumbturn options
  • Tubular drive-in bolt installed inside the jamb provides locking and unlocking of bolt from inside room
  • Discrete release button with decorative cap installed on outside of door for emergency release
  • ADA thumbturn available for commercial and hospitality applications

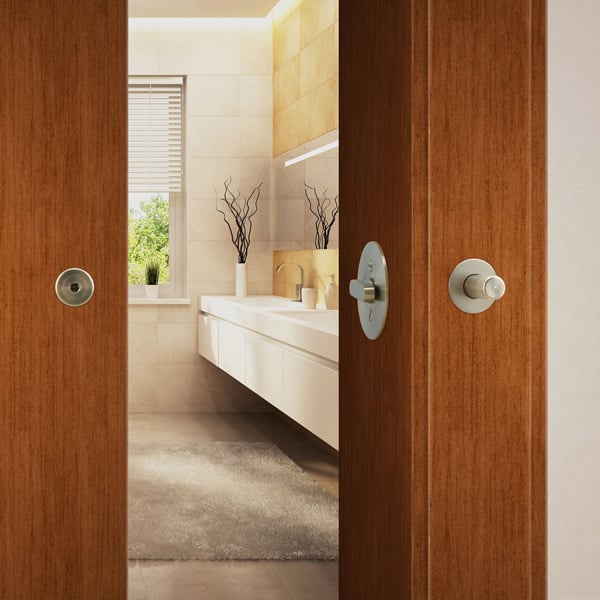

BD4000_glamour_bath

Specifications

Standard Door Thickness: 1-3/8" to 1-3/4" (35-45mm)
Thick Door Kits available
Backset: 2-1/4" (57mm) and 3-1/2" (89mm)
Bolt: 1" (25.4mm)
Spindle Hub: 5x5mm square
Handing: Non-Handed
Standard Finishes:

  • Satin Stainless Steel (32D)
  • Polished Stainless Steel (32)
  • Oil Rubbed Bronze (10B)
  • Graphite Black (19G)
  • Satin Brass (PVD4)
LD-BD4000 copy

Watch the Video

The industry's first designer Privacy Lock for Barn Doors

A simple and elegant privacy lock for barn door openings for either residential or commercial applications, without having to build out extra frames.

Escutcheon and Thumbturn Options

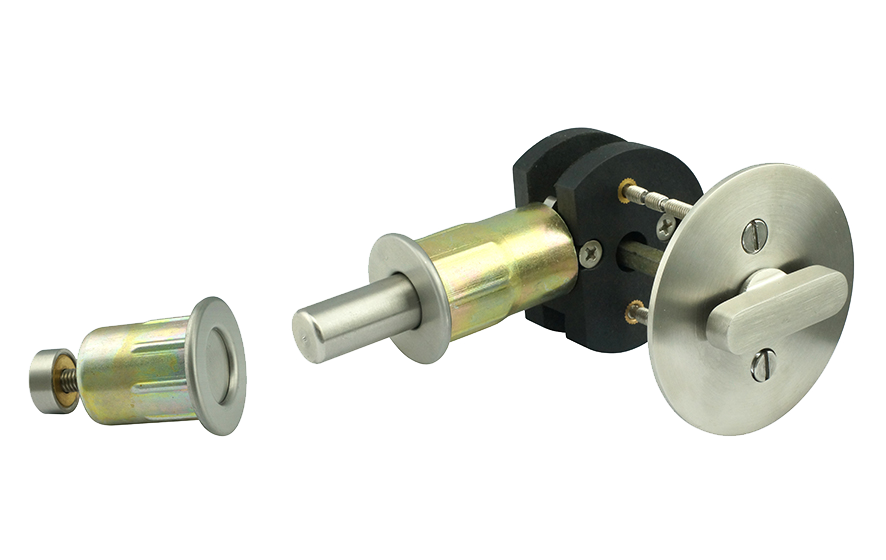

EC1216

EC1216

Round Rose
TT16 Thumbturn
Dimensions

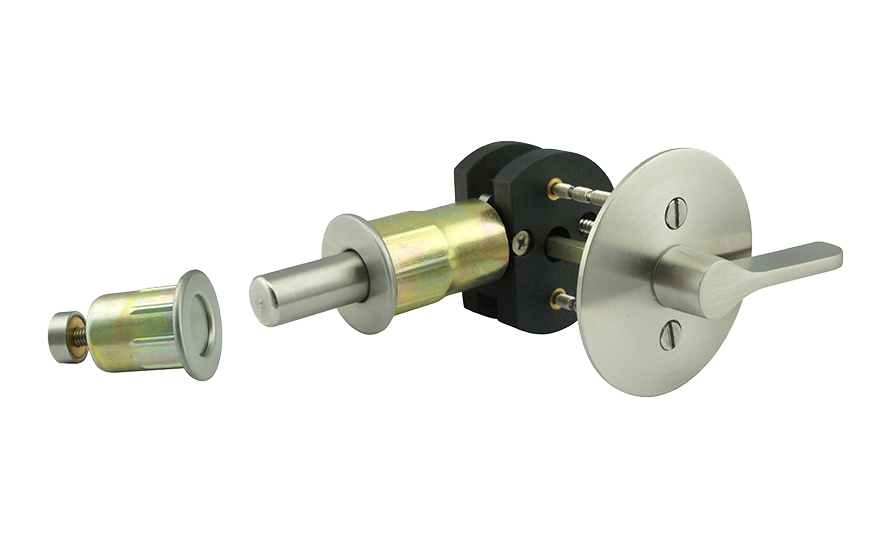

EC1217

EC1217

Round Rose
TT17 ADA Thumbturn
Dimensions
EC1314

EC1314

Square Rose
TT14 Thumbturn
Dimensions
EC1315

EC1315

Square Rose
TT15 ADA Thumbturn
Dimensions

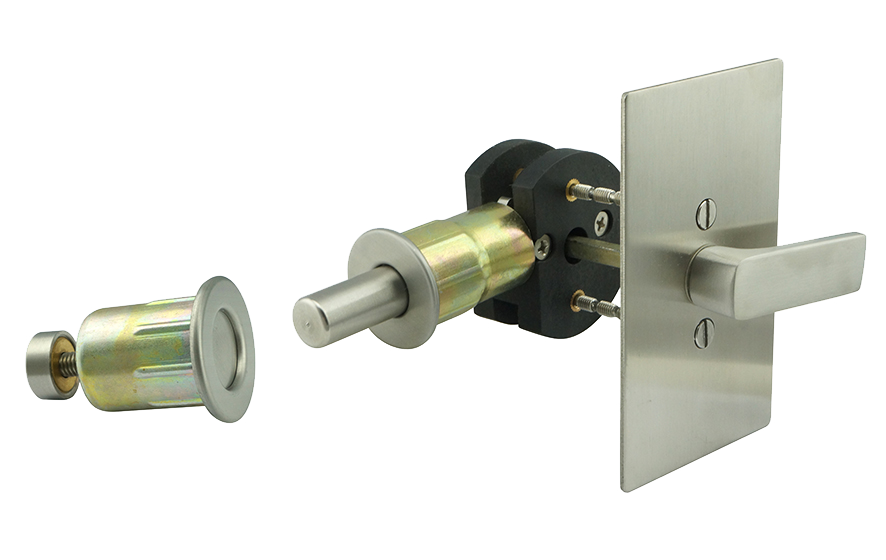

EC1515

EC1515

Rectangular Rose
TT15 ADA Thumbturn
Dimensions
EC1517

EC1517

Rectangular Rose
TT17 ADA Thumbturn
Dimensions

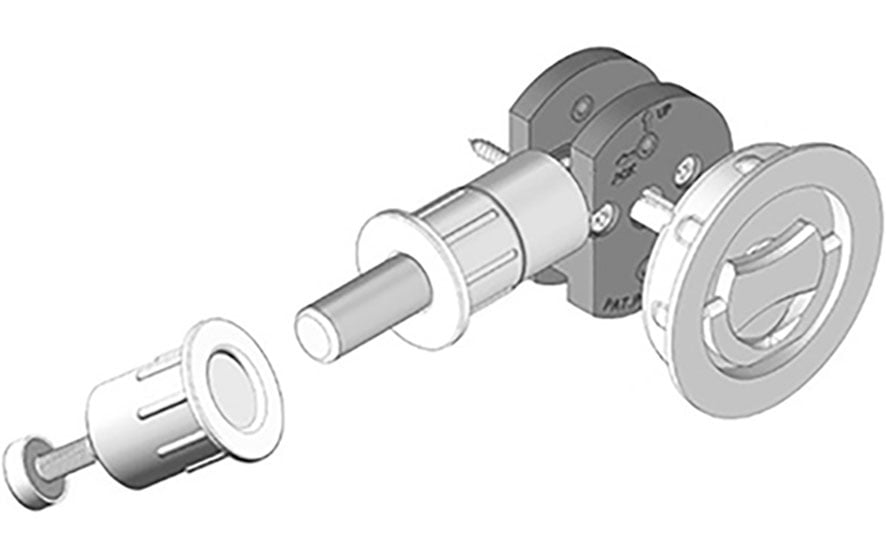

FH2262CF

FH2262CF

Round Rose
Concealed Fixing
TT06 Thumbturn
Dimensions

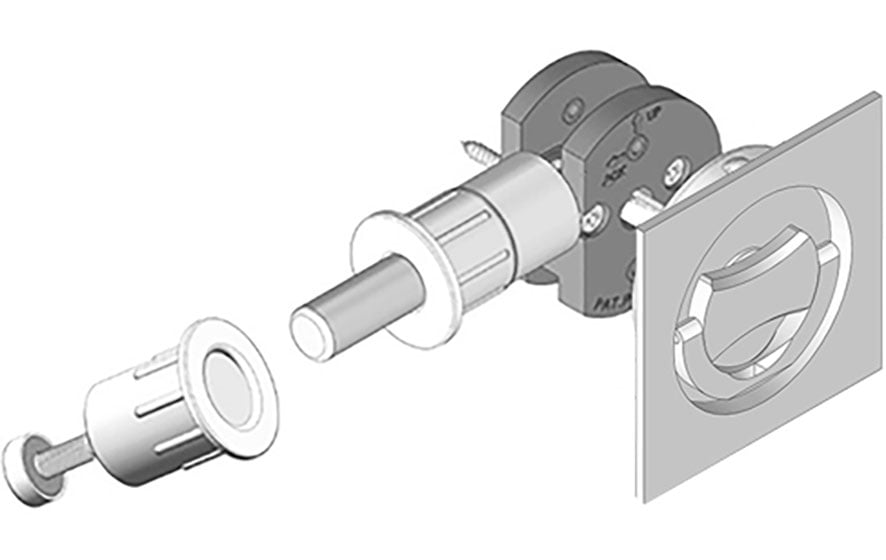

FH2362CF

FH2362CF

Square Rose
Concealed Fixing
TT06 Thumbturn
Dimensions

Finishes

Standard Finishes

32_squareA
32 Bright Stainless Steel
32D_squareA
32D Satin Stainless Steel
26D Satin Chrome
26D Satin Chrome
10B_squareA
10B Oil Rubbed Bronze
19G_squareA
19G Graphite Black
PVD4_squareA
PVD4 Satin Brass

Ceramax Finishes

C19G_squareA
C19G Graphite Black
C19_squareA
C19 CeraMax Flat Black
CDB_squareA
CDB Dark Bronze
CGY_squareA
CGY Stormy Grey

Not all finishes are standard. Custom finishes including CeraMax are available with MOQ and extended lead times.

Barn Door Pull Options

media-Oct-14-2021-10-26-24-34-PM

Flush Pulls

media-Oct-14-2021-10-29-31-55-PM

ADA Surface Pulls
