ED93/ED93F-CVRM
Concealed Vertical Rod Exit Device For Metal Door
ANSI/BHMA 156.5 Grade 1 Heavy Duty
Features
- INOX ED93F-CVRM concealed vertical rod exit devices are suited for most single and double hollow metal door applications
- UL listed for Fire Exit Hardware and meets ANSI A156.3 Grade 1 standards
- Non-handed with a universal design that allows it to easily retrofit the Von Duprin 99 series installation when paired with our INOX exit device trim
- Fits all doors from 36" - 48" in width, 84" - 96" in height, and 1-3/4" in thickness. 36" x 96" and 48" x 84" are available as special order items
Specifications
Device Functions: Exit device only, trims available separately
Device Lengths:
3': 2'2" to 3' (660mm to 914mm) door size
4': 2'9" to 4' (838mm to 1219mm) door size
Strikes:
Top Dull Black Strike (EDLSR-260)
Bottom Dull Black Strike (EDLSR-265)
Dogging Options: Dogging not available on this device
Electric Options: Alarm Kit 36" and 48" available
1. QLR - Motor Driven Retraction
2. REX - Request-to-Exit Switch
3. LBM - Latchbolt Monitor Switch
Miscellaneous Options: GBK Glass Bead Kit
PA Panic Armor
Fasteners & Sex Bolts:
Furnished with wood & machine screws
Latch Bolt: Stainless Steel 3/4" (19mm) throw
Device Centerline From Finished Floor: 41" (1041mm)
Center Case Dimensions: 8-3/32" x 2-13/16" x 2-15/32" (206mm x 71mm x 63mm)
Mechanism Case Dimensions:2-3/16" w x 1-15/16" (55.4mm x 49.1mm)

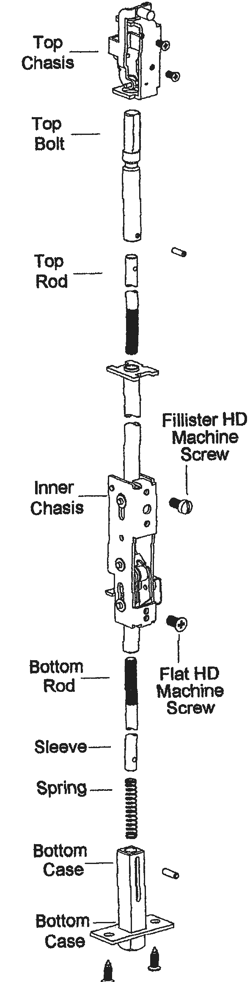

Top & Bottom Latch Case
Standard Panic: 3-15/16" x 2-1/8" x 1-3/8" (100mm x 54mm x 35mm)
Fire Rated: 3-15/16" x 2-11/16" x 2-1/16" (100mm x 68mm x 52mm)
Vertical Rods
36" Door:
Top Rod - 43-1/4" (1099mm)
Bottom Rod - 37-3/4" (959mm)
48" Door:
Top Rod - 56-1/16" (1424mm)
Bottom Rod - 37-3/4" (959mm)
Projections:
Pushbar Neutral 3-3/4" (95.3mm)
Pushbar Depressed 2-15/16" (74.5mm)
Compliance
- ANSI/BHMA A156.3 Grade 1Exit Devices
- ANSI/BHMA A156.29 Exit Lock and Alarm
- UL Listed for ANSI/UL10B and UL10C, CAN/ULC S104 up to 3 Hours
- UBC Standard 7-2 (1997) NFPA 252
- ANSI/UL 305 and CAN/ULC-S132
- NFPA 80 National Fire Protection - Fire Door Assembly
- NFPA101 National Fire Protection - Life Safety
- ANSI/BHMA A156.18 Finishes
- ANSI A117.1 ADA Accessibility
- Electrification - ANSI/UL634, ANSI/UL294, ANSI/UL10C
Trim for Concealed Vertical Rod Exit Device
Escutcheon Trim

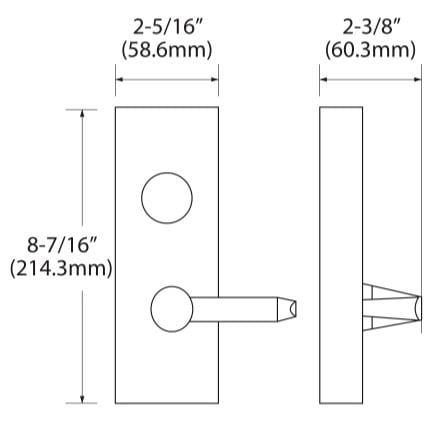

Escutcheon Size: 8-7/16" x 2-5/16"
Lever Projection: 2-3/8"
Cylinder: 1-1/4" Mortise Cylinders included for Entry and Storeroom function. Schlage C keyway standard. Specify "IC" for IC Core Cylinders. Other keyway available by special order.
Strikes
Strikes for ED93-CVRM/ED93F-CVRM/ED93-CVRW/ED93F-CVRW Concealed Vertical Rod Exit Device
EDLSR-260
Top Strike for ED93F-CVRM/ED93F-CVRW Concealed Vertical Rod Exit Device
EDLSR-265
Bottom Strike for ED93F-CVRM/ED93F-CVRW Concealed Vertical Rod Exit Device
Finish
Standard
32D Satin Stainless Steel
Custom finishes may be available with MOQ and extended lead times.
