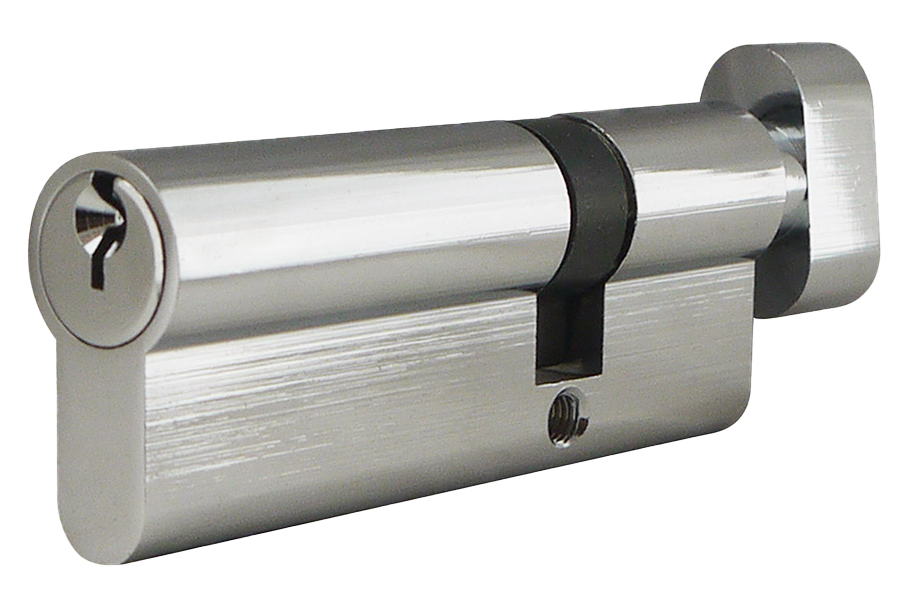

CYEU-5530TK-26-website

Euro Cylinders

A variety of sizes and finishes makes this a perfect fit for INOX Universal Multipoint trim

Features

  • For Entry and Patio functions
  • Double Cylinder (key & thumbturn), Single or Half Cylinder (thumbturn only)
  • Solid brass construction
  • Schlage C keyway, 5 pin, 3 keys per cylinder
  • Includes 1 breakable machine screw to fix cylinder to multipoint lock case with backset up to 2-3/4" (70mm)
CYEUs on parade copy

Specifications

Material: Solid Brass
Keyway: Schlage C Keyway, 5 pin, 3 keys per cylinder
Cylinder Screw: M5x80mm (breakable)
Thumbturn: 1-3/32" (27mm) x 1/2" (12.6mm)

Dimensions

CYEU-1035

45mm (10/35)

  • Door Thickness 1-3/4" (45mm)
  • CYEU-1035TK
CYEU-1040

50mm (10/40)

  • Door Thickness: 2" (51mm)
  • CYEU-1040TK
CYEU-1045

55mm (10/45)

  • Door Thickness: 2-1/4" - 2-1/2" (57mm - 63mm)
  • CYEU-1045TK
CYEU-1050

60mm (10/50)

  • Door Thickness 2-3/4" - 3" (70mm - 76mm)
  • CYEU-1050TK
CYEU-1055

65mm (10/55)

  • CYEU-1055TK
CYEU-3535

70mm (35/35)

  • Door Thickness: 1-3/4" (45mm)
  • Lock Case Centered
  • CYEU-3535TK
CYEU-4040

80mm (40/40)

  • Door Thickness: 2" (51mm)
  • Lock Case Centered
  • CYEU-4040TK
CYEU-3055

85mm (30/55)

  • Door Thickness: 2-1/4" - 2-1/2" (57mm - 63mm)
  • Lock Case Off-Center
  • CYEU-3055TK
CYEU-5530

85mm (55/30)

  • Door Thickness: 2-1/4" - 2-1/2" (57mm - 63mm)
  • Lock Case Off-Center
  • CYEU-5530TK
CYEU-3550

85mm (35/50)

  • Door Thickness: 2-1/4" - 2-1/2" (57mm - 63mm)
  • Lock Case Off-Center
  • CYEU-3550TK
CYEU-5035

85mm (50/35)

  • Door Thickness: 2-1/4" - 2-1/2" (57mm - 63mm)
  • Lock Case Off-Center
  • CYEU-5035TK
CYEU-4545

90mm (45/45)

  • Door Thickness: 2-1/4" - 2-1/2" (57mm - 63mm)
  • Lock Case Centered
  • CYEU-4545TK
CYEU-5050

100mm (50/50)

  • Door Thickness: 2-3/4" - 3" (70mm - 76mm)
  • Lock Case Centered
  • CYEU-5050TK

Finishes

Standard Finishes

32D_squareA
15 Satin Nickel
32_squareA
26 Polished Chrome
C19G_squareA
10B Oil Rubbed Bronze
