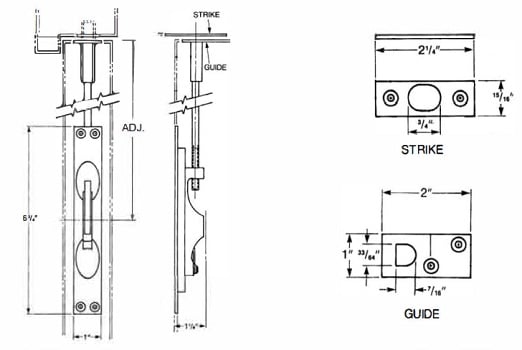

Manual Flushbolt for Metal Doors

Forged construction with spring-loaded lever to project or retract bolt

Features

Rugged forged brass construction for dependability and strength
5/8" throw with 7/8" vertical adjustment capability
12" rod fits standard ANSI preparation
Spring-loaded lever projects or retracts bolt
Listed up to 3 hours on hollow metal and steel-covered composite doors up to 8 feet

Downloads

Data Sheet
Three Part Specifications (coming soon)

Specifications

Material: Forged brass
Bolts: 1/2" Diameter
Projection: Bolts project 5/8" from top or bottom edge of door with 7/8" vertical adjustment
Handing: Non-handed
Spring-loaded Lever to project or retract bolts

Compliance

ANSI A156.16: L14251
FED. SPEC.: 1049
NFPA80: National Fire Protection Association

Finish

Standard

26D Satin Chrome

Custom finishes are available with MOQ and extended lead times.
