Hinges

Plain Bearing

Material: Steel
Series: HG8133
Size: 4-1/2" (114mm) x 4-1/2" (114mm)
Thickness (Gauge): 0.134" (3.4mm)
Standard Finish: 26D Satin Chrome

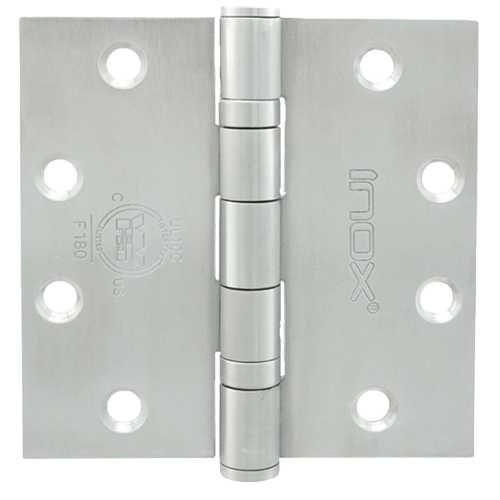

Full Mortise Hinges

Two Anti-friction Ball Bearing

Material: Steel
Series: HG8112
Sizes:
4" (102mm) x 4" (102mm) (0.13" Ga.)
4-1/2" (114mm) x 4" (102mm) (0.134" Ga.)
4-1/2" (114mm) x 4-1/2" (114mm) (0.134" Ga.)
5" (127mm) x 4-1/2" (114mm) (0.134" Ga.)
NRP: All HG8112 sizes except 4" x 4" available with non-removable pins
Radius Corner: 4" x 4" available with 1/4" radius corner

Material: Stainless Steel
Series: HG5112
Sizes:
4" (102mm) x 4" (102mm) (0.13" Ga.)
4-1/2" (114mm) x 4" (102mm) (0.134" Ga.)
4-1/2" (114mm) x 4-1/2" (114mm) (0.134" Ga.)
NRP: All HG5112 sizes except 4-1/2" x 4" available with non-removable pins

Full Mortise Hinges

Four Anti-friction Ball Bearing

Material: Steel
Series: HG8111
Sizes:
4-1/2" (114mm) x 4-1/2" (114mm) (0.180" Ga.)
5" (127mm) x 4-1/2" (114mm) (0.190" Ga.)
5" (127mm) x 5" (127mm) (0.190" Ga.)
NRP: Non-removable pins available for each

Material: Stainless Steel
Series: HG5111
Sizes:
4-1/2" (114mm) x 4-1/2" (114mm) (0.180" Ga.)
5" (127mm) x 4-1/2" (114mm) (0.190" Ga.)
5" (127mm) x 5" (127mm) (0.190" Ga.)
NRP: Non-removable pins available for HG5111 size 4-1/2" x 4-1/2"

Square Corner

Material: Steel
Series: HG8107SP
Size:
4-1/2" (114mm) x 4-1/2" (114mm) (0.134" Ga.)

Material: Stainless Steel
Series: HG5107SP
Sizes:
4" (102mm) x 4" (102mm) (0.13" Ga.)
4-1/2" (114mm) x 4-1/2" (114mm) (0.134" Ga.)

1/4" Radius Corner

Material: Steel
Series: HG8107SPR
Size:
4" (102mm) x 4" (102mm) (0.13" Ga.)

Material: Stainless Steel
Series: HG5107SPR
Sizes:
4" (102mm) x 4" (102mm) (0.1" Ga.)

Electrified

Material: Steel
Item Code: HG8112-45-ETH4W
Size: 4-1/2" (114mm) x 4-1/2" (114mm) (0.134" Ga.)
