kick, mop, and armor PLATES
16 gauge stainless steel plates
Features
- INOX Kick, Mop, and Armor Plates are manufactured from stainless steel with a minimum of 16 gauge for longevity and to ensure the finish stays beautiful over the life of the product
- Each plate is individually wrapped with mounting screws for ease of installation and to prevent scratching during shipment
- Easily cleaned with mild soap and warm water
- MicroArmor antimicrobial coating available for additional protection
- Complies with codes and regulations for plates and includes a limited three year warranty
Downloads
Data Sheet
Three Part Specifications (coming soon)
Specifications
Door Thickness: Packed with mounting screws for 1-3/4" doors; other screws available on request
Material: Stainless Steel
Dimensions: Each plate is 4" x 16" (101.6mm x 406.4mm) and 16 gauge (0.50) thick, beveled on all four sides
Pull: 3/4" Dia. (19mm), overall 6-3/4" (171.5mm), projection 2-1/8" (54mm)
Plates are individually wrapped with mounting screws
Code Compliance
- ANSI A156. - J101, J102, J103: Metal
- ANSI A117.1 and ADA: Barrier-free accessibility
- C-UBC: California Amended Uniform Builders Code
- NFPA 80: National Fire Protection Association
- NFPA 101: National Fire Protection Association - Life Safety
Dimensions

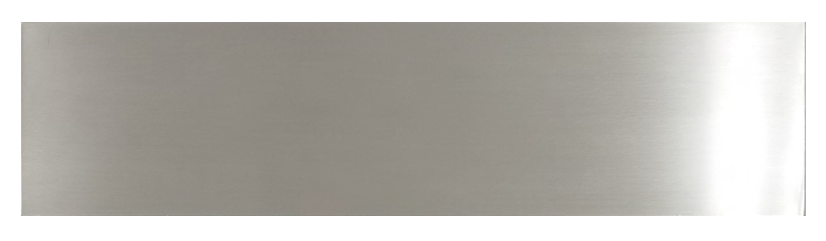

Kick Plate
KPN35 Series
304 Grade Stainless Steel
4 Edge Bevel, Countersunk holes
- 8" x 34" (KPN35-0834)
- 10" x 34" (KPN35-1034)
- 10" x 46" (KPN35-1046)
- 12" x 34" (KPN35-1234)
KPN Series
400 Grade Stainless Steel (no nickel)
No bevel or countersunk holes
- 8" x 34" (KPN0834)
- 10" x 34" (KPN1034)
- 10" x 46" (KPN1046)
- 12" x 34" (KPN1234)
Armor Plate
KPN35 Series
304 Grade Stainless Steel
4 Edge Bevel, Countersunk holes
- 8" x 34" (KPN35-3634)
KPN Series
400 Grade Stainless Steel (no nickel)
No bevel or countersunk holes
- 36" x 34" (KPN3634)
Mop Plate
KPN35 Series
304 Grade Stainless Steel
4 Edge Bevel, Countersunk holes
- 6" x 34" (KPN35-0634)
KPN Series
400 Grade Stainless Steel (no nickel)
No bevel or countersunk holes
- 6" x 34" (KPN0634)
Stretcher Plate
- Order using Mop Plate codes
Finish
Standard
32D Satin Stainless Steel
Custom finishes are available with MOQ and extended lead times.
