Magnetic Door Holder
Easy installation, tri-voltage capabilities, up to 45 lbs. holding power
Features
- Tri-voltage; can be wired 12V DC, 24V AC/DC, or 120V AC
- 30 to 45 lbs. holding power
- Can be installed on fire/smoke barrier doors held open until released by remote switching device
- Can be used to hold door open
- 1" extension provided; optional extensions available
- Easy wire installation with quick insert connector
- Armature is thru-bolted to standard 1-3/4" thick door for security
- 360° mobility to armature
- Thick door kits available
- No plastic parts
Downloads
Data Sheet
Three Part Specifications (coming soon)

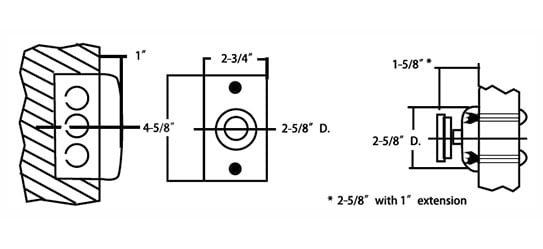

Dimensions
Code Compliance
- ANSI A156.15: C00011
- UL Listed: For Smoke/Fire Barrier Doors
- C-UBC: California Amended Uniform Builders Code
- NFPA 80: National Fire Protection Association
- NFPA 101: National Fire Protection Association - Life Safety
Optional Extensions
DHM-EX50:
1/2" (20050)
1/2" (20050)
DHM-EX75:
3/4" (20075)
3/4" (20075)
