Materials:Stainless Steel levers and escutcheons Door Thickness: 1-3/4" (44mm) standard Thick Door Kit available Backset: 2-1/2" (63.5mm) standard (MT620) 2- 3/4" (70mm) optional (MT720) Handing: Please specify; lock case field reversible Center Distance: Lever to Cylinder 3-5/8" (92mm) Lever to Thumbturn: 2-7/16" (62mm) Cylinder & Keys: 6 pin Schlage C keyway with 2 keys Standard Cylinder Size for 1-3/4" Door: NY / MH trim: 1-1/4" Mortise Cylinder ME / BW trim: 1-1/8" Mortise Cylinder Keying services available
Functions

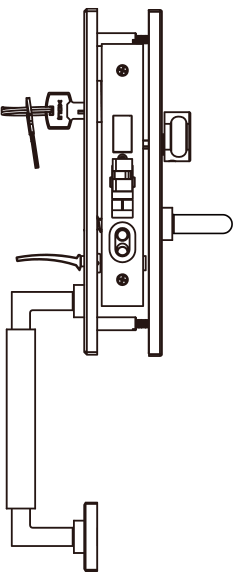

Entrance
Deadbolt is locked or unlocked by key outside or thumbturn inside
Thumbturn from inside locks and unlocks deadbolt
Inside lever is always unlocked, allowing emergency egress
Toggle always in locked position unless set to unlock manually
Locking deadbolt by thumbturn or key resets toggle to locked position

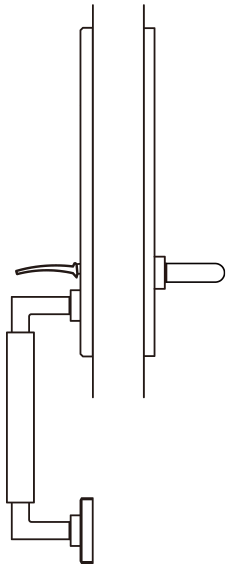

Entry Dummy
NY / MH / ME / BW trim with dummy cylinder outside
Dummy plate escutcheon inside
Mortise Handleset Options
New York (NY)
Manhattan (MH)
Metropolis (ME)

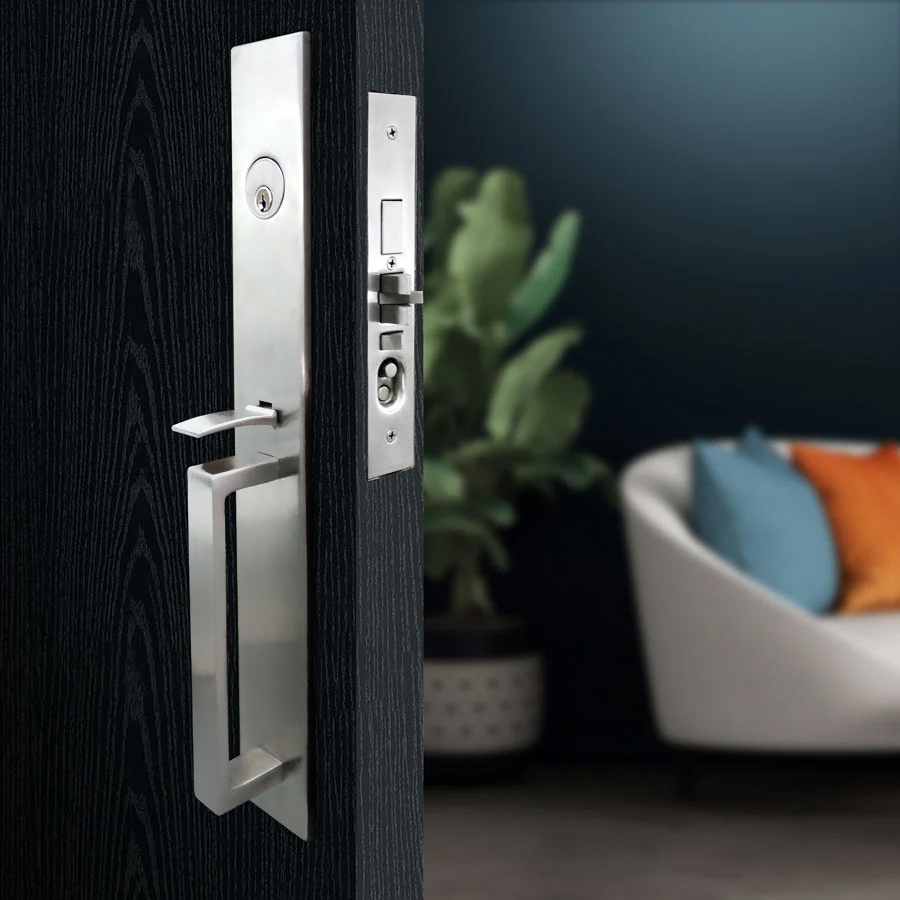

Broadway (BW)
Inside Plate Inside trim features a beautiful SF plate, higher lever position, with mortise lock
Mortise Cylinder Cylinder is flush to plate; 6 pin Schlage C Keyway
Lever Options
All INOX designer levers are standard options for interior lock sets.
