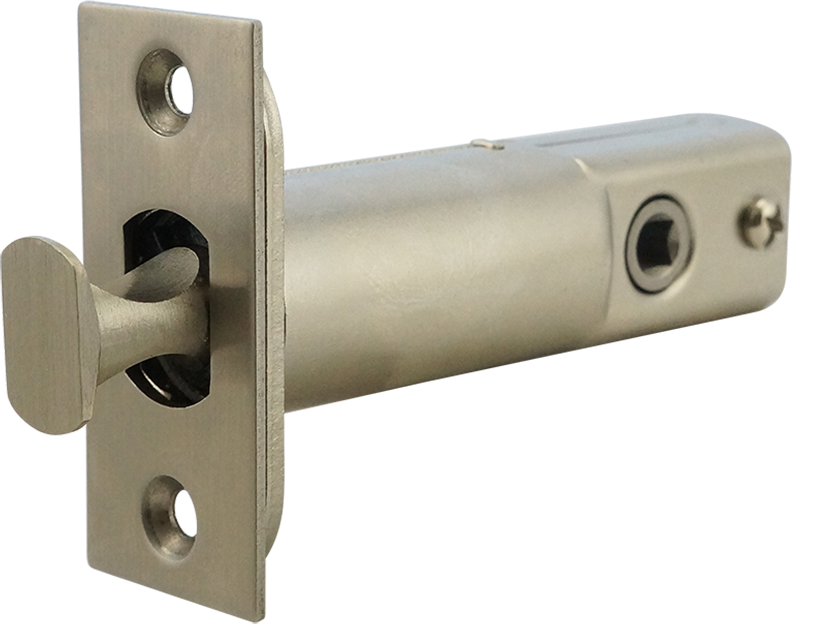

PD2000-Test

PD2000 TwistLock

Combination Edge Pull &  Privacy Pocket Door Lock

A patented two-in-one locking solution for sliding and pocket doors

Features

The distinctive PD2000 TwistLock™ Edge Pull/Privacy Pocket Door Lock features a top-of-the-line edge pull and designer INOX trim working together as both spring-loaded edge pull and locking bolt.

The PD2000 fits a standard 2-1/8" bore - no special prep required - and is constructed of heavy gauge steel. It is suitable for Hospitality, Mixed-use, Residential, and Multi-family applications.

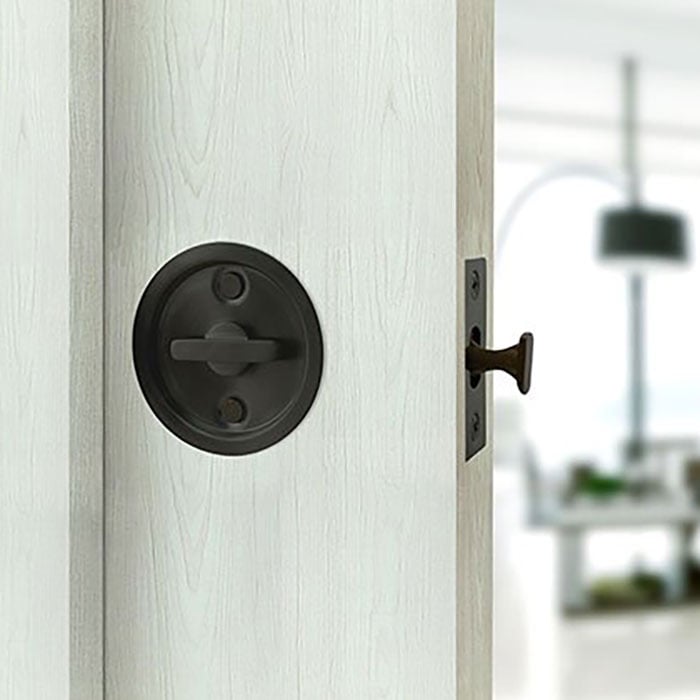

Twistlock 19G glamour

Specifications

Door Thickness, Standard Trim [FH12 / FH13]: 1-3/8" (35mm)- 1-3/4" (45mm)
Concealed Fastener Trim [FH22CF / FH23CF]: 1-3/4" (45mm)
Thick door kits available
Backset: 2-3/8" (60mm)
Bolt Projection: 5/8" (15.5mm)
Bolt Case Size: 3-1/4" x 3-5/8" x 1"
Thumbturn Spindle: 5 x 5mm square
Handing: Non-handed

PD2000_twistlock_callout-1
Spring Loaded
Push to eject the hammerhead-shaped finger pull bolt
PD2000_twistlock_callout_2
Double Duty
The finger pull bolt is designed to contour ergonomically to your fingers but also acts at the bolt engaging the strike as a privacy lock

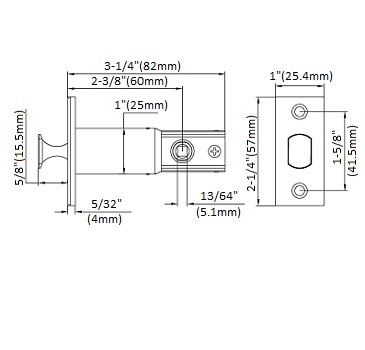

LD for PD2000 Landing Page
  • Rotating Bolt locks into strike for quick, easy pulling and locking of pocket doors
  • Edge pull and lock have been successfully tested to 250,000 cycles
  • No special door prep required: PD2000 fits into a standard 2-1/8" bore
  • Available with standard or Concealed Fixing trim
  • Standard finishes include 32D Satin Stainless Steel and 19G Graphite Black

PD2000 TwistLock:
A revolution in edge pulls

  • Utilizes a unique rotating bolt that locks into the strike
  • Patented design: Edge Pull works as both a spring-loaded pull and locking bolt
  • Designed to fit a standard 2-1/8" bore
  • Commercially tested with 250,000 cycle test
  • User-friendly emergency coin release from the outside

Functions

PD2000_privacy_function

PD2062
Privacy Lock with Edge Pull

Spring-loaded edge pull activated by pressing on front end. Edge Pull rotates inside strike acting as deadbolt. Rotate thumbturn on recessed trim to lock or unlock Deadbolt/Edge Pull inside strike. Push Deadbolt/Edge pieces back into lockcase when not in use. Emergency release via coin turn from outside.
PD2000_passage_function

PD2061
Passage/Edge Pull

Spring-loaded edge pull is activated by pressing on front end. Recessed flush trim to assist closing and opening of door. Push Edge Pull back into lock case when not in use

Trim Options

FH12PD2062-32D-2-alt

FH12 Round Rose

2-1/2" Diameter

For 1-3/8" to 1-3/4" thick doors
Thick Door Kits available

32D Satin Stainless Steel
19G Graphite Black

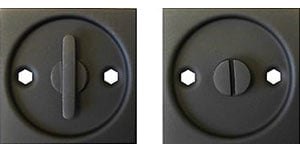

FH13PD2062-19G-alt

FH13 Square Rose

2-3/8" x 2-3/8"

For 1-3/8" to 1-3/4" thick doors
Thick Door Kits available

32D Satin Stainless Steel
19G Graphite Black

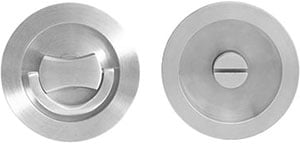

FH22CF-32D-alt

FH22CF Round Rose

2-1/2" Diameter
Concealed Fixing

For 1-3/4" thick doors
Thick Door Kits available

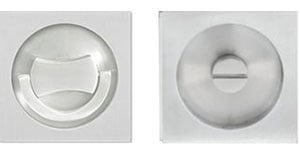

FH23PD8440-32D-alt

FH23CF Square Rose

2-3/8" x 2-3/8"
Concealed Fixing

For 1-3/4" thick doors
Thick Door Kits available



Finishes

Standard

32D_squareA
32D Satin Stainless Steel



19G_squareA
19G Graphite Black

CeraMax

C19G_squareA
C19G Graphite Black



C19_squareA
C19 Flat Black



CDB_squareA
CDB Dark Bronze



CGY_squareA
CGY Stormy Grey

Custom finishes including CeraMax are available with MOQ and extended lead times.

TL7_Gold-1

2020 GOLD medal winner

INOX PD2000 TwistLock
