PD5000

PD5000 Series

Sliding & Pocket Door Locks

Available with a variety of INOX designer flush and surface pull options

Features

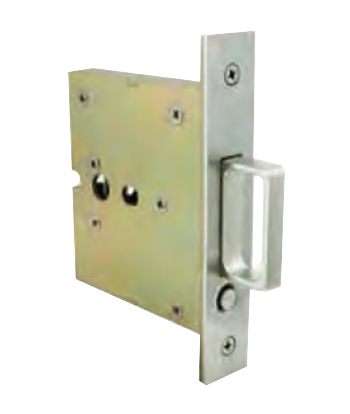

The PD5000 Series opens new possibilities for sliding door locks for a variety of residential and commercial applications. Made of heavy gauge steel, the PD5000 is available with beautiful INOX flush and surface pull options in an array of lasting finishes to enhance any home or commercial property

PD5000 with pull v2

Specifications

Standard Door Thickness: 1-3/4" (45mm)
Thick Door Kits available
Slim Doors: For 1-3/8" (35mm) thick doors, use FH27SL, FH22CF, or FH23CF flush pull options
Backset: PD50: 2" or 2-1/2" (fits both); PD52: 2-1/2" or 2-3/4" (fits both); PD53: 2" (51mm), 2-1/2" (64.5mm), or 2-3/4" (70mm)
Deadbolt: 1" (25.4mm)
Thumbturn Spindle: 5x5mm square
Handing: Non-handed
Cylinder: Schlage C keyway 6 pin mortise with 2 keys

LD-PD5000
PD5000_Circ-1
PD53
Lockcase with Deadbolt (no Edge Pull) for latching and locking functions. Also available: PD52 (Lockcase with Dust Proof Strike for inactive pair of doors)
PD5000_Circ-2
PD50
Lock case with Edge Pull for Pocket Doors

Sliding Door Functions

PD5215-Func

PD5215

Passage with Lockcase as Dust Proof Strike
  • Lockcase used as Dust Proof Strike on inactive side of pair of doors
PD5340-Func

PD5340

Privacy with Emergency Release
  • Deadbolt operated by inside Thumbturn or outside Emergency Release coin turn
PD5350

PD5350

Entry with Single Cylinder
  • Deadbolt retracted by key (outside) or thumbturn (inside)
PD5360-Func

PD5360

Patio
  • Deadbolt operated by Thumbturn from inside. No entrance from outside when door is locked
PD53BTB

BTB

Dummy / Passage
  • Surface pulls only, no lockcase

Pocket Door Functions

PD5010-Func

PD5010

Passage with Lockcase
  • Used as Flush Pull or matching trim on pair of doors
  • Edge Pull operated by push button
PD53DP

DP

Dummy / Passage
  • Flush Pulls only, no lockcase
PD53 Exploded

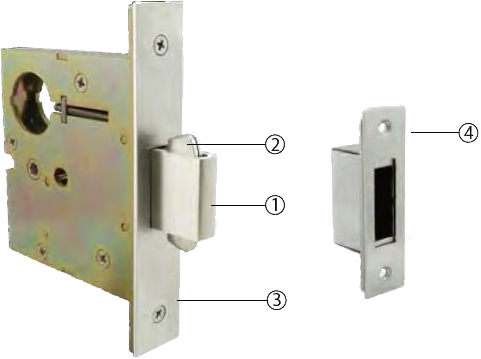

Exploded Diagram

  1. Brass deadbolt with 1" throw (for 2-1/2" or 2-3/4" locks) or 3/4" throw (for 2" backset locks)
  2. Self-retracting hook with non-marring latch bolt
  3. Stainless steel or brass faceplate, 2mm thick
  4. Vertically-adjustable strike

Options

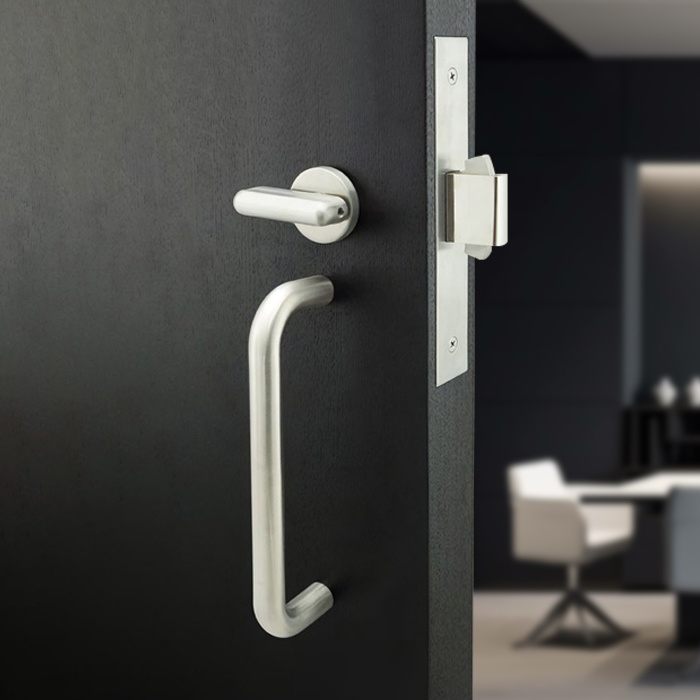

PD5000 with PHIX31108 ADA Pull

ADA Pulls

INOX stainless steel surface pulls are as beautiful to the sight as to the touch, and are available in a variety of beautiful finishes.

FH2700 Flush Pull Bright Stainless 32

Flush Pulls

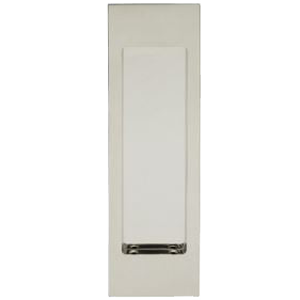

INOX stainless steel flush pulls are just the right touch to any décor. Beautifully designed and crafted, with nine finishes in stock to accent and complement your home or office.

WS-90 Wall Strike

WS-90 Wall Strike

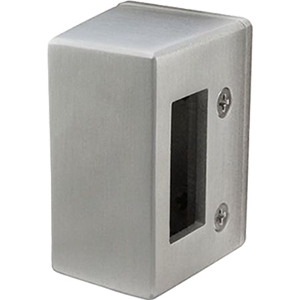

Surface-mounted wall strike that enables sliding and barn doors to surface latch; features an ingenious design that provides an interlocking mounting system and bracket for tamper-resistant security.

CMB106 Standard Mortise Cylinder

Cylinders

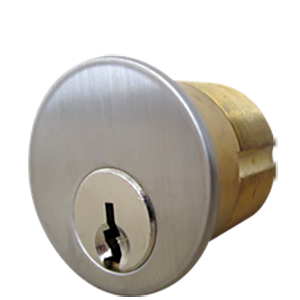

Explore mortise cylinder and IC core options, plus keying services and more.

Thumbturn with Indicator

Thumbturns

Enable your privacy functions with designer options, including ADA compatible thumbturns and indicator windows.

INOX Thick door kit hardware

Thick Door Kit

Enable your lock to work on custom or non standard door thickness sizes.

Finishes

Standard Finishes

32_squareA
32 Bright Stainless Steel
32D_squareA
32D Satin Stainless Steel
10B_squareA
10B Oil Rubbed Bronze
19G_squareA
19G Graphite Black
PVD4_squareA
PVD4 Satin Brass

Ceramax Finishes

C19G_squareA
C19G Graphite Black
C19_squareA
C19 CeraMax Flat Black
CDB_squareA
CDB Dark Bronze
CGY_squareA
CGY Stormy Grey

Not all finishes are standard with each lever or flush pull. Custom finishes including CeraMax are available with MOQ and extended lead times.

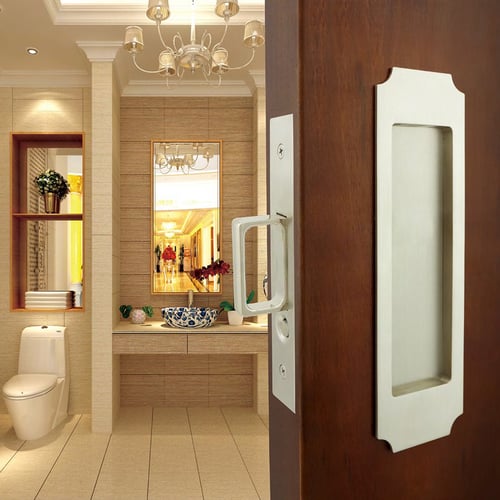

PD5000 with FH22 Crown Flush Pull glamour residential bathroom
PD5000 with FH32 Pull

INOX PD95 Sliding Door Mortise Locks

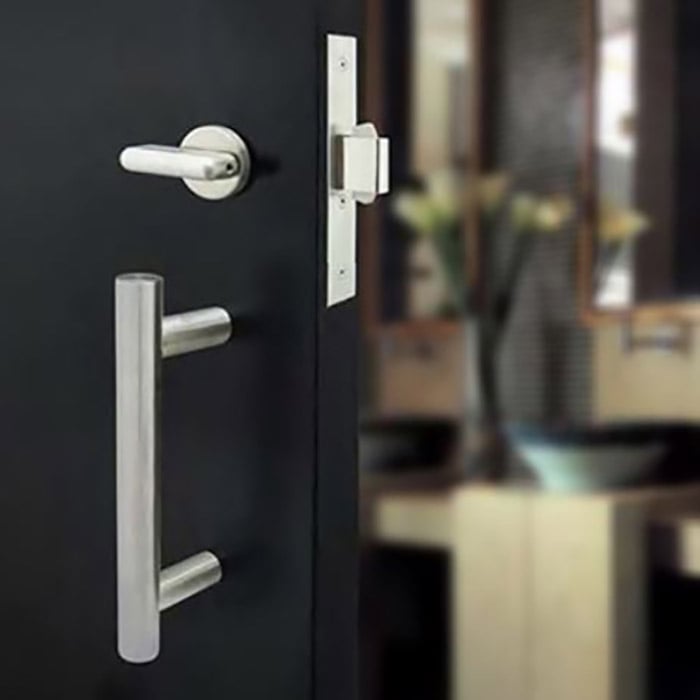

PD5000 with PHIX31108 ADA Pull glamour hospitality

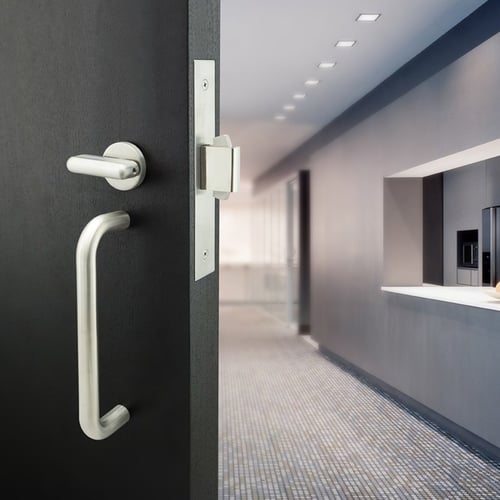

PD5000 with PHIX31108 ADA Pull

INOX PD95 Sliding Door Mortise Locks

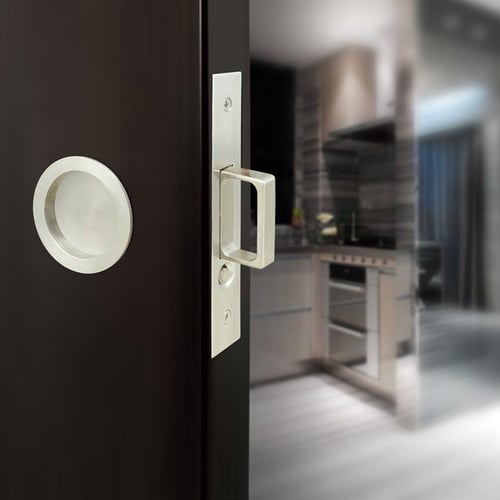

PD5000 with FH22 Luna Flush Pull glamour residential kitchen
