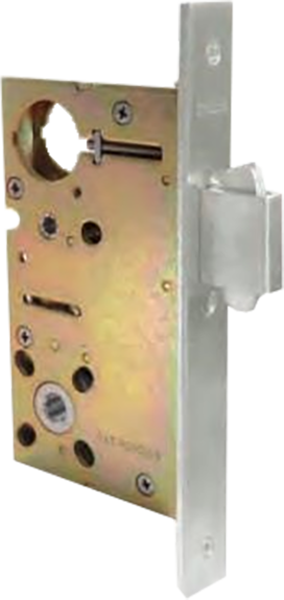

PD95 lockcase

PD9500 Series

Mortise Lock for Sliding Doors

Secure locking functions for sliding doors with emergency egress for improved life safety and code compliance

Features

Provides the simplicity and security of sliding door mortise locks while ensuring quick and easy egress in case of emergency - with the added beauty of INOX designer trim

Available in Privacy, Entry, and Classroom functions

Meets ANSI A117.1 Accessibility (ADA Compliant) and UL1784 Standard

INOX PD95 Healthcare Sliding Door Lock

Specifications

Standard Door Thickness: 1-3/4" (45mm)
Thick Door Kits available
Backset: 2-3/4" (70mm) and 2-1/2" (64mm)
Bolt: 1" (25.4mm)
Lever Spindle: 8x8mm square
Thumbturn Spindle: 5x5mm square
Case Size: 8"x3-3/8"x11/16" (203mm x 85.8mm x 17mm)
Lever to Cylinder Center to Center: 3-7/8" (98mm)
Lever to Thumbturn Center to Center: 2-11/16" (68mm)
Handing: Specify handing
Lockcase: Field reversible without disassembly
Cylinder: Schlage C keyway 6 pin mortise with 2 keys

Compliance

  • ANSI A1171.1 Accessibility Code
  • ADA Compliant
  • Meets UL1784 Standard
  • ANSI/BHMA 156.36 certified and tested to Grade 1 standard of 250,000 cycles

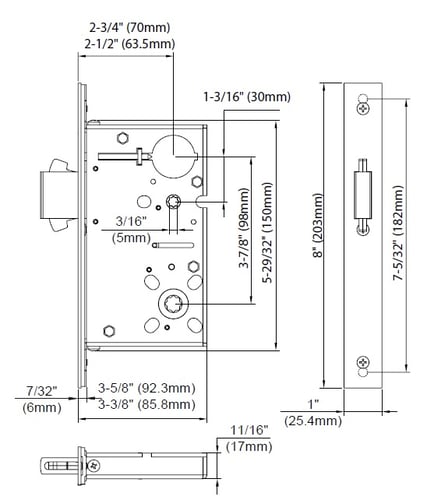

LD-PD95-Imp
  • Emergency Egress: Top security, but single-action function of interior lever ensures easy exit in case of emergency
  • ADA: Complies with the Americans with Disabilities Act
  • Indicator: Optional with the Privacy Release and Red/White Indicator

Meet the PD95

The INOX PD95 mortise lock for sliding doors offers a unique design that provides locking functions for improved safety and security, as well as code compliance for healthcare facility, business, or home.

  • Easy installation
  • Can be locked with key or thumbturn
  • Emergency egress in case of crisis
  • Heavy gauge steel lockcase
  • Meets UL1784 standards

Functions

PD9540

Privacy - PD9540

  • Deadbolt locked with inside thumbturn and can be unlocked with thumbturn or outside emergency coin release
  • Outside lever is always rigid
  • Inside lever retracts deadbolt for emergency egress

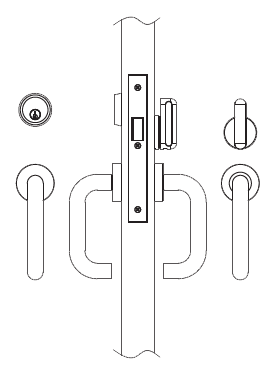

PD9550-1

Entry/Office - PD9550

  • Deadbolt engaged or retracted by inside thumbturn or outside key
  • Outside lever is rigid at all times
  • Inside lever retracts deadbolt for emergency egress
PD9570 copy-1

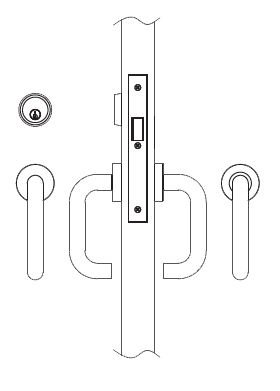

Classroom - PD9570

  • Deadbolt can be retracted by inside lever or outside key
  • No thumbturn on inside
  • Outside lever rigid at all times
  • Inside lever retracts bolt for emergency egress

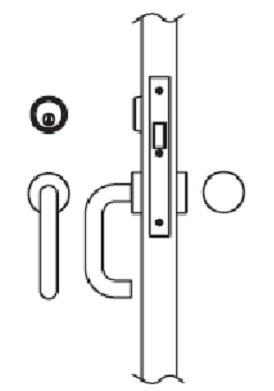

PD9592

Security Communicating - PD9595

  • Deadbolt can be retracted by outside key only
  • No thumbturn on inside
  • Outside lever rigid at all times
  • No lever on opposite side; blank or blind rose only
PD9560

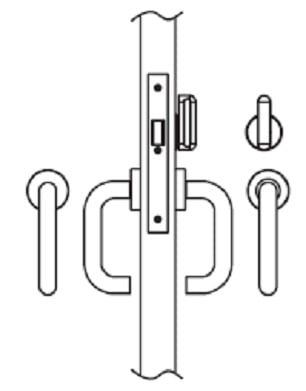

Patio - PD9560

  • Deadbolt is locked by inside thumbturn
  • Deadbolt can be retracted by inside lever or thumbturn
  • Outside lever rigid at all times but door cannot be opened from outside when locked
  • Inside lever retracts bolt for emergency egress
PD95_Expl

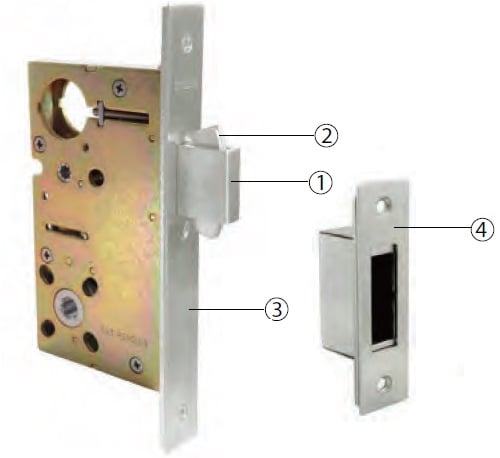

Exploded Diagram

  1. Brass deadbolt with 1" throw
  2. Self-retracting hook with non-marring latch bolt
  3. Stainless steel or brass faceplate, 2mm thick
  4. Vertically-adjustable strike

Options

X_Series_Lever

X Series Levers

Grade 1 cast stainless steel trim designed for mechanical strength without sacrificing beautiful design. Includes ADA-compliant options.

WS-90 Wall Strike

WS90 Wall Strike

Surface-mounted wall strike that enables sliding and barn doors to surface latch; features an ingenious design that provides an interlocking mounting system and bracket for tamper-resistant security.

tt07_thumbturn_indicator_ada

Thumbturns

Enable your privacy functions with design options and indicator windows. ADA options available.

CMB106_Cylinder

Cylinders

Explore domestic and European cylinders, keying options and trim collars.

Finishes

Standard

32_squareA
32 Bright Stainless Steel



32D_squareA
32D Satin Stainless Steel

CeraMax

C19G_squareA
C19G Graphite Black



C19_squareA
C19 Flat Black



CDB_squareA
CDB Dark Bronze



CGY_squareA
CGY Stormy Grey

Custom finishes including CeraMax are available with MOQ and extended lead times.

WEstin copy
Awarded in the Westin Anaheim 2019 Project specifications

INOX PD95 Sliding Door Mortise Locks

Westin_Anaheim_2 copy
Awarded in the Westin Anaheim 2019 Project specifications

INOX PD95 Sliding Door Mortise Locks

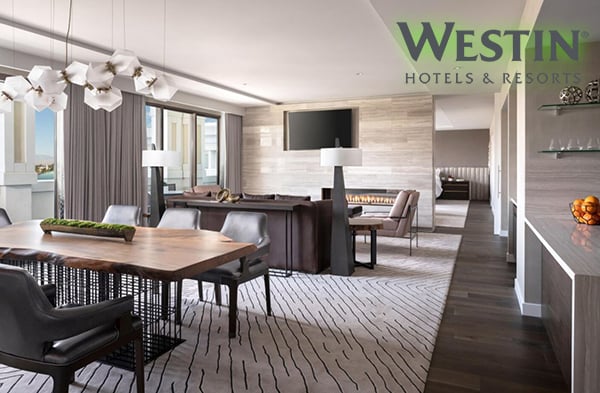

Westin_Anaheim_1 copy
