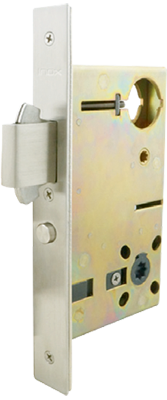

PD96_LockCase_B_trans

PD9600 Series

Self-Latching, Self-Locking Mortise Lock

The patented sliding door lock capable of all major commercial functions usually available only with swinging doors

Features

Architects can now design wider access points, open-concept spaces, and streamlined paths of travel using sliding doors for commercial openings. Available in multiple ANSI/BHMA functions, the patented INOX PD96 is suited for a wide range of applications including but not limited to hospitality, healthcare, commercial, office, and residential facilities

Meets ANSI A117.1 Accessibility (ADA Compliant) and UL 1784 Standard

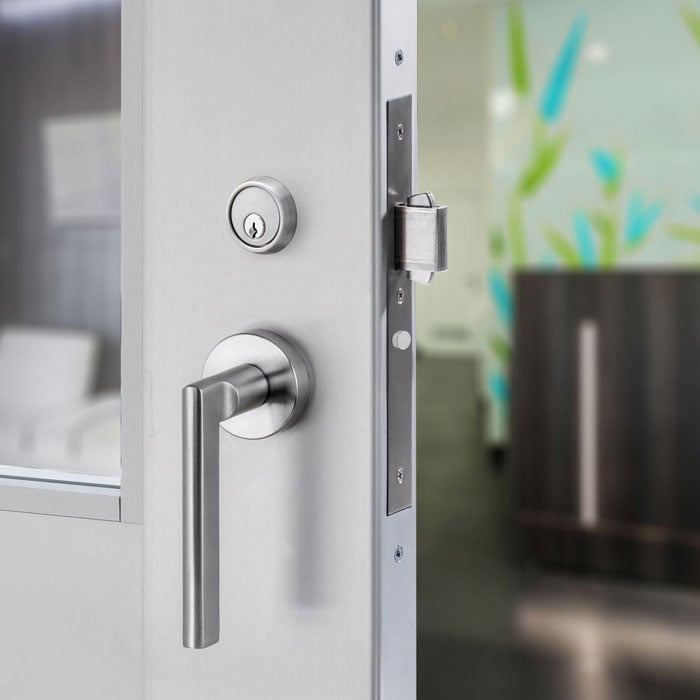

PD96__healthcare_glamour_600

Specifications

Standard Door Thickness: 1-3/4" (45mm)
Thick Door Kits available
Backset: 2-3/4" (70mm) and 2-1/2" (64mm)
Bolt: 1" (25.4mm)
Lever Spindle: 8x8mm square
Thumbturn Spindle: 5x5mm square
Case Size: 8" x 3-3/8" x 11/16" (203mm x 85.8mm x 17mm)
Lever to Cylinder Center to Center: 3-7/8" (98mm)
Lever to Thumbturn Center to Center: 2-11/16" (68mm)
Handing: Please specify handing when ordering
Cylinder: Schlage C keyway 6 pin mortise with 2 keys

Compliance

  • ANSI A1171.1 Accessibility Code (ADA Compliant)
  • Meets UL1784 Standard
  • ANSI/BHMA 156.36 certified and tested to Grade 1 standard of 250,000 cycles
PD96_latchbolt
Contact with the strike activates the winged latchbolt for self-latching.

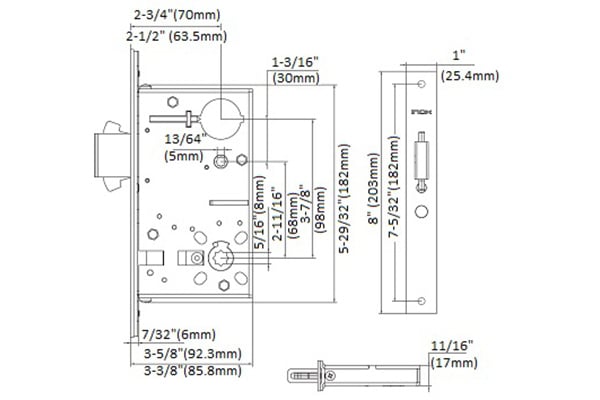

PD96 line drawing
  • Self-Latching: When sliding door is closed, bolt is automatically engaged into strike; outside lever unlocks bolt
  • Self-Locking: When sliding door is closed, bolt is automatically engaged into strike. Outside lever is in locked position, keeping door locked from outside. Key unlocks outside lever, which then unlocks bolt so that door can be opened from outside. Always emergency egress from inside

View the PD96 Entry Function

The self-latching, self-locking features of the PD96 make it ideal for projects requiring multi-function mortise locks for sliding doors.

  • Easy to install
  • Self-latches when door is shut
  • Can be locked with key or thumbturn
  • Emergency egress in case of crisis
  • Meets UL 1784 standards

Functions

PD9610

Passage: PD9610

  • When sliding door closes, Actuator button on faceplate contacts strike and automatically engages deadbolt
  • Outside and inside levers are active and retract deadbolt
  • No thumbturn or keyed cylinder
PD9670

Classroom: PD9670

  • When sliding door closes, Actuator button on faceplate contacts strike and automatically engages deadbolt
  • Outside lever is rigid when locked and cannot retract deadbolt; retracts deadbolt when unlocked
  • Outside lever is locked or unlocked only by key
  • No thumbturn on inside
  • Operating inside lever for egress will not change locked or unlocked status of outside lever
  • Inside lever can always retract deadbolt for emergency egress
PD9640

Privacy: PD9640

  • When sliding door closes, Actuator button on faceplate contacts strike and automatically engages deadbolt
  • Outside lever is rigid when locked and cannot retract deadbolt; retracts deadbolt when unlocked
  • Outside lever is locked by inside thumbturn
  • Coin release can unlock outside lever in case of emergency
  • Operating inside lever to retract deadbolt simultaneously resets outside lever and inside thumbturn to unlocked position
  • Inside lever can always retract deadbolt for emergency egress
PD9670

Storeroom: PD9680

  • When sliding door closes, Actuator button on faceplate contacts strike and automatically engages deadbolt
  • Outside lever is rigid when locked and cannot retract deadbolt
  • Outside lever is locked or unlocked by key only
  • Key cannot be removed from cylinder when outside lever is unlocked; removing key re-locks outside lever
  • No thumbturn on inside
  • Operating inside lever will not change locked status of outside lever
  • Inside lever can always retract deadbolt for emergency egress
PD9653

Inner Entry: PD9650

  • When sliding door closes, Actuator button on faceplate contacts strike and automatically engages deadbolt
  • Outside lever is rigid when locked and cannot retract deadbolt; retracts deadbolt when unlocked
  • Outside lever locked or unlocked by key or thumbturn
  • Operating inside lever for egress simultaneously resets outside lever and inside thumbturn to unlocked position
  • Inside lever can always retract deadbolt for emergency egress
MicrosoftTeams-image (15)

Exit: PD9690

  • When sliding door closes, Actuator button on faceplate contacts strike and automatically engages deadbolt
  • Outside lever is always rigid and locked and cannot retract deadbolt
  • No cylinder outside or thumbturn inside
  • Inside lever can always retract deadbolt for emergency egress
PD9650

Entrance: PD9653

  • When sliding door closes, Actuator button on faceplate contacts strike and automatically engages deadbolt
  • Outside lever is rigid when locked and cannot retract deadbolt; retracts deadbolt when unlocked
  • Outside lever locked or unlocked by key or inside thumbturn
  • Outside lever remains in locked or unlocked position until status reset with key or inside thumbturn
  • Operating inside lever will not change locked or unlocked status of outside lever or inside thumbturn
  • Inside lever can always retract deadbolt for emergency egress
MicrosoftTeams-image (16)

Communicating: PD9692

  • When sliding door closes, Actuator button on faceplate contacts strike and automatically engages deadbolt when sliding door closes
  • No lever on one side; blank or blind rosette only
  • On opposite side, lever retracts deadbolt
PD9660

Patio: PD9660

  • When sliding door closes, Actuator button on faceplate contacts strike and automatically engages deadbolt
  • Outside lever is rigid when locked and cannot retract deadbolt; retracts deadbolt when unlocked
  • Outside lever is locked or unlocked by inside thumbturn
  • No keyed cylinder outside; door cannot be opened from outside when locked
  • Operating inside lever to retract deadbolt simultaneously resets outside lever and inside thumbturn to unlocked position
  • Inside lever can always retract deadbolt for emergency egress
MicrosoftTeams-image (17)

Security Communicating: PD9695

  • Keyed function for connected rooms with security; only an authorized user such as hotel staff can lock or unlock the room-side lever
  • When sliding door closes, Actuator button on faceplate contacts strike and automatically engages deadbolt
  • When locked, lever is rigid; when unlocked, lever can retract deadbolt
  • Room-side lever is locked or unlocked by key
  • No lever on opposite side, blank or blind rosette only

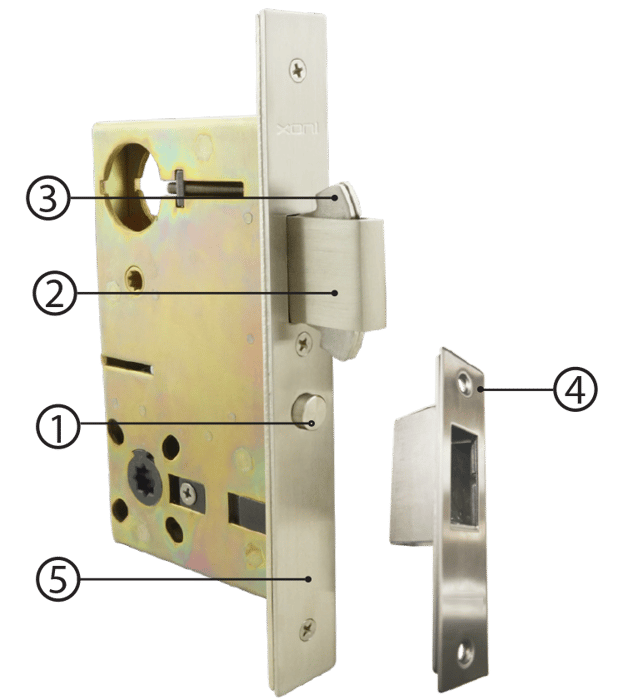

PD96_exploded_diagram

Components of Lock

  1. Solid brass push button to activate the self-locking feature
  2. Bolt: 1" (25.4 mm) throw, heavy duty brass bolt
  3. Self-retracting non-marring hooks Strike: Vertical adjustment of dust box 1/4" (6.35mm)
  4. Strike with Actuator
  5. Faceplate: Stainless Steel, 5/64" (2 mm) thick

Options

X_Series_Lever

X Series Levers

Grade 1 cast stainless steel trim designed for mechanical strength without sacrificing beautiful design. Includes ADA-compliant options.

WS90L_c_angle

WS90L Wall Strike

The larger size of the WS90L makes it the perfect option as a surface-mounted wall strike to engage the PD96 self-latching mortise lock.

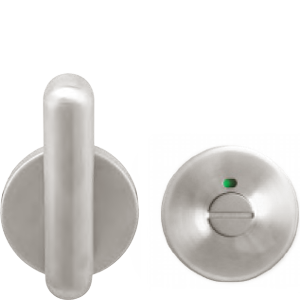

tt07_thumbturn_indicator_ada

Thumbturns

Enable your privacy functions with design options and indicator windows. ADA options available.

CMB106_Cylinder

Cylinders

Explore domestic and European cylinders, keying options and trim collars.

Finishes

Standard

32D_squareA
32D Satin Stainless Steel

CeraMax

C19G_squareA
C19G Graphite Black



C19_squareA
C19 Flat Black



CDB_squareA
CDB Dark Bronze



CGY_squareA
CGY Stormy Grey



Custom finishes including CeraMax are available with MOQ and extended lead times.
