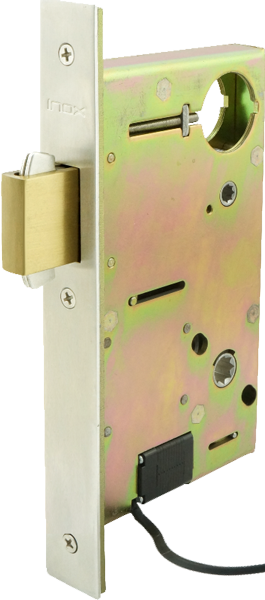

Electrified Mortise Lock with Overhead Power Transfer

BHMA/ANSI Grade 1 electrified sliding door mortise lock designed specifically for openings in high tamper situations. Integrates with most access control products, including biometric readers

Features

The INOX PD97 is built with an advanced stepper motor inside the lockcase and a power transfer yamaka concealed at the top of the door to make this electrified mortise lock for sliding doors highly tamper resistant. The PD97 Grade 1 lock is well suited for commercial, educational, and healthcare environments working with sensitive or high-risk communities.

Meets ANSI A117.1 Accessibility (ADA Compliant)

PD97 AOffice glamour

Specifications

Standard Door Thickness: 1-3/4" (45mm)
2" to 2-1/4" Thick Door Kits available
1-3/8" (35mm) Slim Door spacing ring available
Backset: 2-3/4" (70mm) and 2-1/2" (63.5mm)
Bolt: 1" (25.4mm)
Thumbturn Spindle: 5x5mm square
Lever Spindle: 8x8mm square
Case Size: 8" x 3-3/8" x 11/16" (203mm x 85.8mm x 17mm)
Lever to Cylinder Center to Center: 3-7/8" (98mm)
Lever to Thumbturn Center to Center: 2-11/16" (68mm)
Handing: Specify handing
Cylinder: Schlage C keyway 6 pin 1-1/4" mortise with 2 keys; optional SFIC and LFIC cores available

Electrical Specifications

Voltage: 12/24 DC

Compliance

  • ANSI A1171.1 Accessibility Code (ADA Compliant)
  • UL1034 Certified
PD97_yamaka_powertransfer_open
Open Door
Power is supplied through connectors at top of door and jamb; connectors link when door is closed
PD97_yamaka_powertransfer_closed
Closed Door
When closed the yamaka power transfer connection supplies power to the lock.
pd97_wiring_through_the_door
  • Channel through the door: When sliding door is closed, bolt is automatically engaged into strike; outside lever unlocks bolt
  • Power controlled by relay: When sliding door is closed, bolt is automatically engaged into strike. Outside lever is in locked position, keeping door locked from outside. Key unlocks outside lever, which then unlocks bolt so that door can be opened from outside. Always emergency egress from inside



View the PD97 in Action

The touchless locking/unlocking and access control compatability of the PD97 are available for pocket and sliding doors.

  • Motor-driven winged bolt
  • Touchless lock operation
  • Emergency Egress
  • Lock remains secure during power failure



Functions

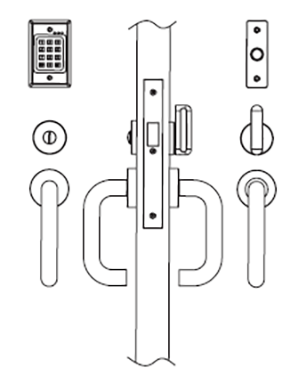

PD9740

Privacy - PD9740

  • Door locks with inside thumbturn; unlocks with inside lever or outside coin release
  • Thumbturn inside throws/retracts deadbolt to lock/unlock door
  • Outside lever is rigid at all times
  • Inside lever always unlocks deadbolt for emergency egress
PD9750_Revised

Office / Inner Entry - PD9750

  • Insert and turn key from outside or turn thumbturn inside to throw/retract deadbolt to lock/unlock door
  • Outside lever is rigid at all times
  • Inside lever always unlocks deadbolt for emergency egress
  • Optional access control relay device provides authentication or triggering for power transfer to lock
PD9760

Patio / Exit - PD9760

  • Thumbturn inside throws/retracts deadbolt to lock/unlock door
  • Outside lever is rigid at all times
  • Inside lever always unlocks deadbolt for emergency egress
PD9770

Classroom - PD9770

  • Insert and turn key from outside to throw/retract deadbolt to lock/unlock door
  • Door cannot be locked from inside
  • Outside lever is rigid at all times
  • Inside lever always unlocks deadbolt for emergency egress
PD97_exploded_diagram-1

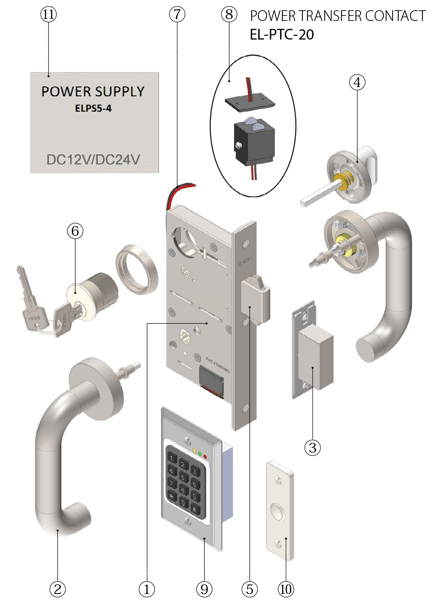

Exploded Diagram

  1. PD97 Lockcase
  2. XGT or XGS Rose and X Series Lever
  3. Strike with vertical adjustment of dust box up to 1/4" (6.35mm) for easy installation
  4. TT07 ADA Thumbturn
  5. Bolt: 1" (25.4 mm) throw, heavy duty brass bolt
  6. Cylinder: Schlage C key-way 6 pin mortise cylinder
  7. Electrical wire
Available Accessories:
     8. Power transfer contact
     9. Key pad
    10. Push button
     11. Power Supply

Options

X_Series_Lever

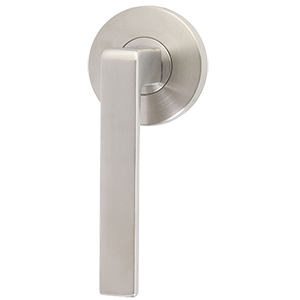

X Series Levers

Grade 1 cast stainless steel trim designed for mechanical strength without sacrificing beautiful design. Includes ADA-compliant options.

WS-90 Wall Strike

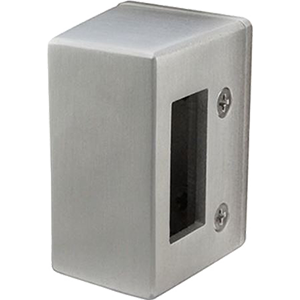

WS90 Wall Strike

Surface-mounted wall strike that enables sliding and barn doors to surface latch; features an ingenious design that provides an interlocking mounting system and bracket for tamper-resistant security.

tt07_thumbturn_sans_indicator_ada

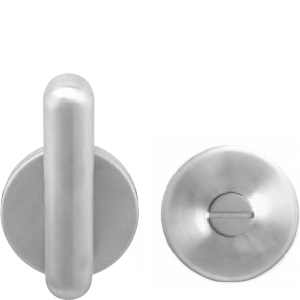

Thumbturns

Enable your privacy functions with design options and indicator windows. ADA options available.

Hand_Wave_Image

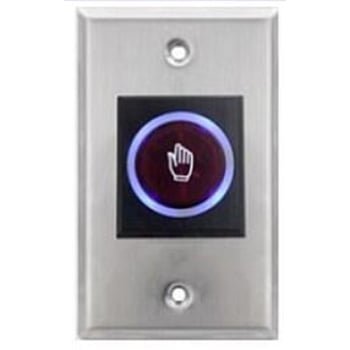

Extended Access Controls

Accessories for convenience, contactless entry when door is unlocked, and additional power and security, all with low 12/24 DC power.

CMB106_Cylinder

Cylinders

Explore domestic and European cylinders, keying options and trim collars.

Finishes

Standard Finishes

32_squareA
32 Bright Stainless Steel
32D_squareA
32D Satin Stainless Steel
PVD4_squareA
PVD4 Satin Brass
(243 & 276 levers)

CeraMax Finishes

C19G_squareA
C19G Graphite Black
C19_squareA
C19 CeraMax Flat Black
CDB_squareA
CDB Dark Bronze
CGY_squareA
CGY Stormy Grey

Custom finishes including CeraMax are available with MOQ and extended lead times.

healthcare_design_Banner


INOX PD97 - Finalist in the 2021 Healthcare Design magazine Product Innovation awards.

"This product has been on our wishlist for years. INOX has ingeniously created the solution we've been waiting for!"

2021 Healthcare Design
