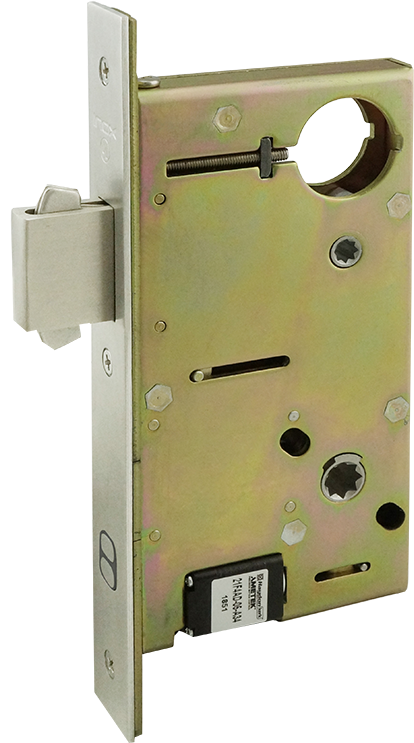

Features

The Grade 1 INOX PD97PT integrates with most access control products, including keypads and biometric readers, combining smart door lock capabilities with electronic lock features to provide keyless and keyed locking and latching solutions with a much easier installation than standard electric mortise locks.

Meets ANSI A117.1 Accessibility (ADA Compliant) and UL Standards for UL294 (Safety Access Control System Units) and UL1034 (Safety Burglary-Resistant Electric Locking Mechanisms) and is recommended for:

  • Hospitality
  • Healthcare
  • Commercial
  • Office
  • Residential

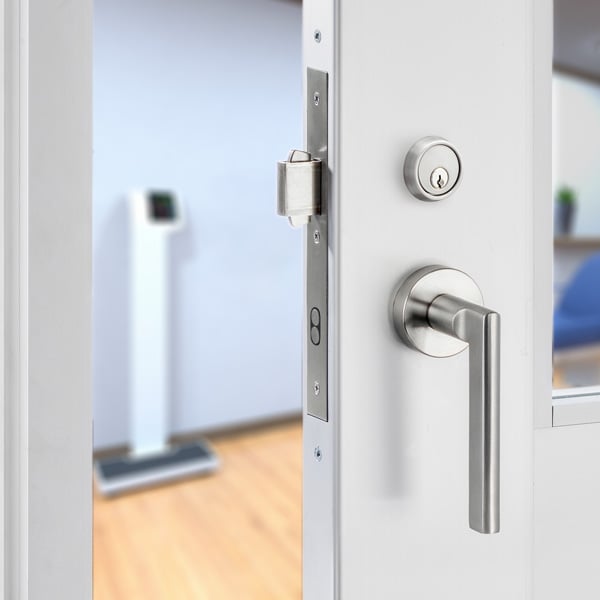

PD97PT_healthcare_glamour_600

Specifications

Standard Door Thickness: 1-3/4" (45mm) Standard
1-3/8" (35mm) with Thin Door Kit
2" to 2-1/4" (50mm - 57mm) Thick Door Kits available
Backset: 2-3/4" (70mm) and 2-1/2" (63.5mm)
Lever to Cylinder Center to Center: 3-7/8" (98mm)
Lever to Thumbturn Center to Center: 2-11/16" (68mm)
Handing: Specify handing
Cylinder: Schlage C keyway 6 pin, 1-1/4" mortise cylinder with 2 keys (standard); optional SFIC and LFIC cores available
CAM: CAM01-SCL Clover Cam

Electrical Specifications

Voltage: 12/24 DC
Max Current: 560 mA (Lock Body), 40 mA (Strike)

Compliance

  • UL1034 Burglary-resistant Electric Locking Mechanisms
  • UL294 Standard for Access Control System Units
  • ANSI/BHMA A156.25 Electrified Mortise Locks
  • ANSI/BHMA A156.18 Finishes
  • ANSI A117.1 ADA Accessibility
PD97PT_power
Powered from the wall to the strike with a low 12/24 volt DC current, the Grade 1 PD97PT makes installation easy.
PD97PT_noDrilling
When door is closed, strike connects with lock, and door auto-latches or auto-locks, based on the function installed. Fail neutral; door remains locked or unlocked, whatever state it was in when power fails

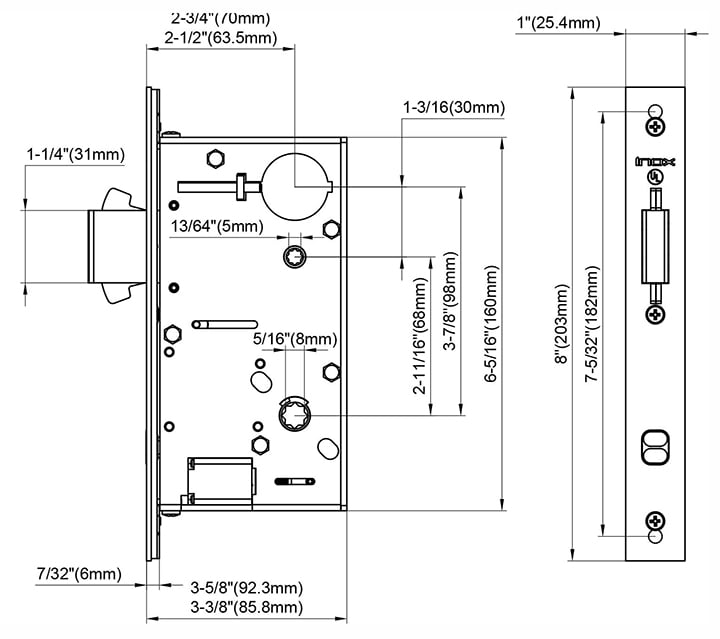

PD97PT Lockcase Iinedrawing 11.19 copy

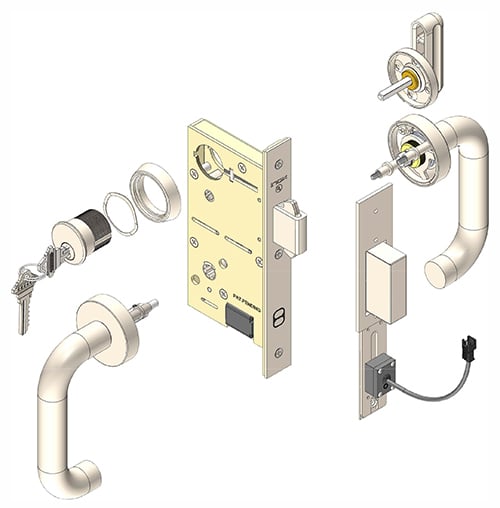

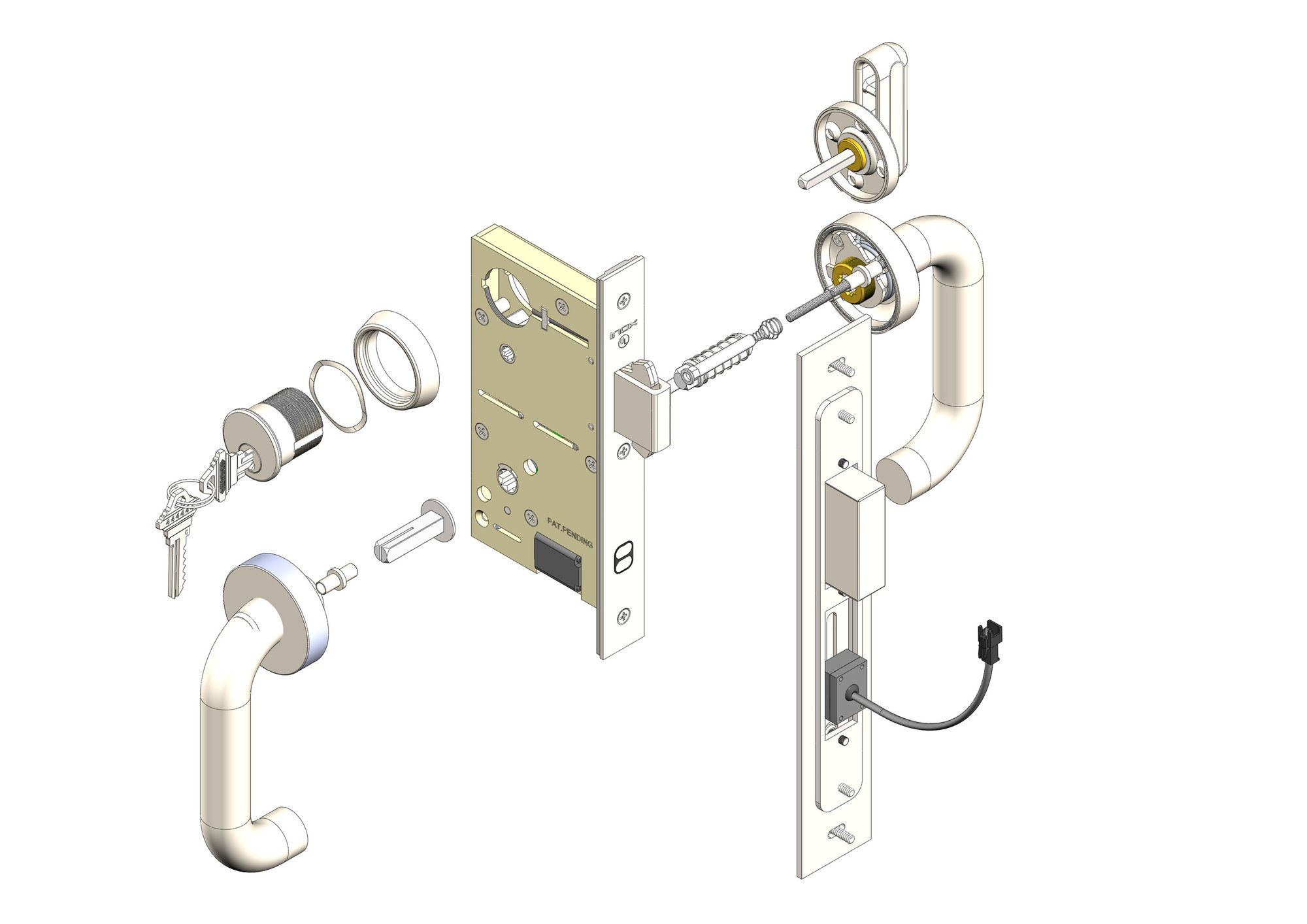

Exploded View PD97PT copy

Functions

PD97PT50 Entry Office copy 2

Office/Inner Entry - PD97PT50

  • Deadbolt projected or retracted by built-in stepper motor when energized by 12/24V DC power transferred through contacts on lock and strike
  • Insert and turn key from outside or use thumbturn inside to throw/retract deadbolt to lock/unlock door
  • Outside lever is rigid at all times
  • Inside lever always unlocks deadbolt for emergency egress
  • Optional access control relay device provide authentication or triggering for power transfer to lock

PD97PT60 Patio copy 2

Patio/Exit - PD97PT60

  • Deadbolt projected or retracted by built-in stepper motor when energized by 12/24V DC power transferred through contacts on lock and strike
  • Thumbturn inside throws/retracts deadbolt to lock/unlock door
  • Outside lever is rigid at all times
  • Inside lever unlocks deadbolt for emergency egress
PD97PT50 Entry Office copy 2

Privacy - PD97PT40

  • Deadbolt projected or retracted by built-in stepper motor when energized by 12/24V DC power transferred through contacts on lock and strike
  • Thumbturn inside throws/retracts deadbolt to lock/unlock door
  • Outside emergency coin release unlocks outside lever, which then retracts bolt
  • Inside lever always unlocks deadbolt for emergency egress
PD97PT70 Classroom copy 2

Classroom - PD97PT70

  • Deadbolt projected or retracted by built-in stepper motor when energized by 12/24V DC power transferred through contacts on lock and strike
  • Insert and turn key from outside to throw/retract deadbolt to lock/unlock door
  • Door cannot be locked from inside
  • Outside lever is rigid at all times
  • Inside lever always unlocks deadbolt for emergency egress

Options
