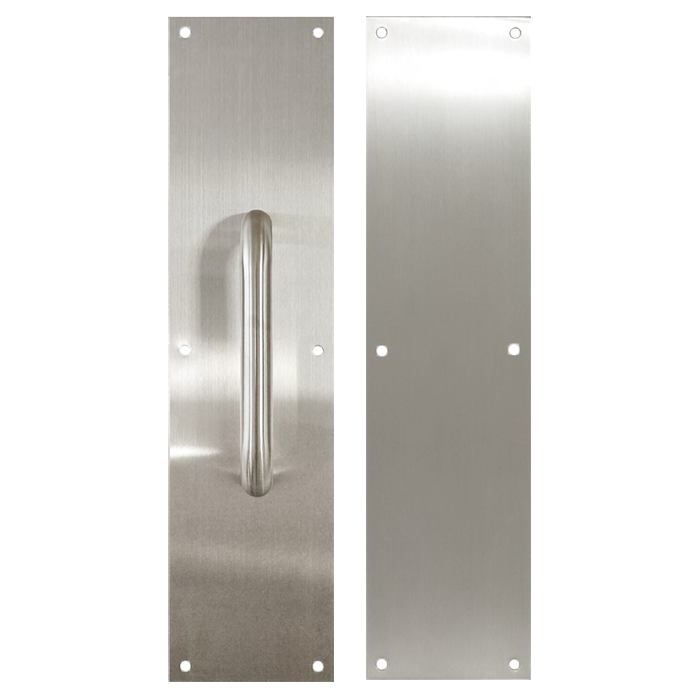

PUSH and PULL PLATES
16 gauge beveled stainless steel plates
Features
- INOX push and pull plates are manufactured from stainless steel with a minimum of 16 gauge for longevity and to ensure the finish stays beautiful over the life of the product
- Each plate is individually wrapped with mounting screws for ease of installation and to prevent scratching during shipment
- Easily cleaned with mild soap and warm water
- MicroArmor antimicrobial coating available for additional protection
- Complies with codes and regulations for push and pull plates and includes a limited three year warranty
Downloads
Data Sheet
Three Part Specifications (coming soon)
Specifications
Door Thickness: Packed with mounting screws for 1-3/4" doors; other screws available on request
Material: Stainless Steel
Dimensions: Each plate is 4" x 16" (101.6mm x 406.4mm) and 16 gauge (0.50) thick, beveled on all four sides
Pull: 3/4" Dia. (19mm), overall 6-3/4" (171.5mm), projection 2-1/8" (54mm)
Plates are individually wrapped with mounting screws
Code Compliance
- ANSI A156. - JS01: Push Plate and J405 Pull Plates
- ANSI A117.1 and ADA: Barrier-free accessibility
- C-UBC: California Amended Uniform Builders Code
- NFPA 80: National Fire Protection Association
- NFPA 101: National Fire Protection Association - Life Safety
Finish
Standard
32D Satin Stainless Steel
Custom finishes are available with MOQ and extended lead times.
