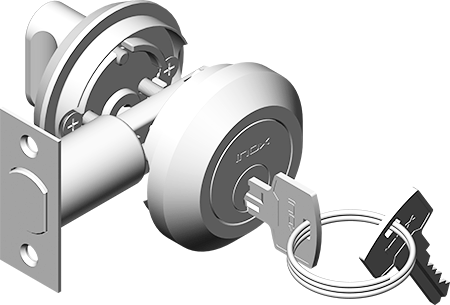

RD_Deadbolt_3Da

RD/SD Deadbolts

Stainless Steel residential or light-duty commercial deadbolts

Features

  • Beautiful, clean design and engineering that meets tough security needs
  • Fully concealed fixing
  • Optional double cylinder (keyed on both sides) and communicating (thumbturn on inside only) functions
  • Professional keying services available
SD-Deadbolt-32D-glamour

Specifications

Door Thickness: 1-3/4" (44mm) standard
Thin and Thick Door Kits available
Backset: 2-3/8" (60mm) standard
2-3/4" (70mm) available
Material: Stainless Steel
Cylinder & Keys: Schlage C Keyway
Cylinder 5 pin with 2 keys
Keying services available
Deadbolt: 1" throw with hardened roller pin
Fully concealed fixing: M5 thru-bolts
UL fire-rated deadbolt available

SD310

SD_exterior
SD_interior

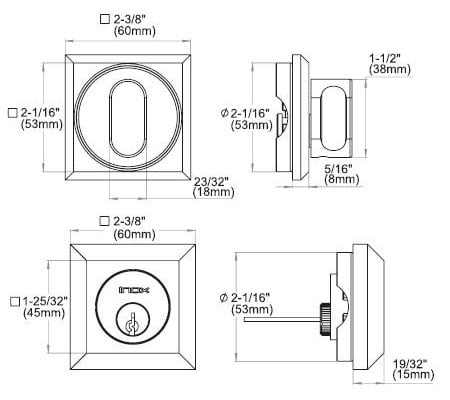

LD-SD-drawing

RD110

RD_exterior
RD_interior

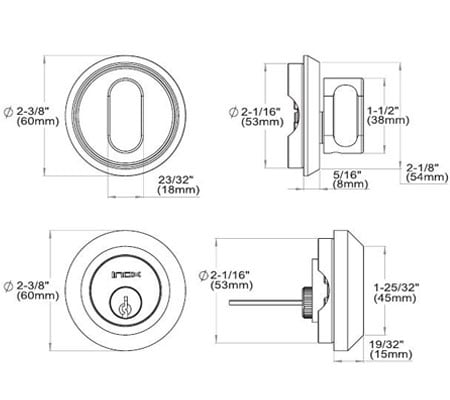

LD-RD110-1-drawing

Functions

LD-Deadbolt_110_310

RD110/SD310

Single Cylinder

Key outside or thumb-turn inside retracts deadbolt

LD-Deadbolt_120_320

RD120/SD320

Double Cylinder

Deadbolt operated by Key from either side

LD-Deadbolt_120_320

RD192/SD392

Communicating

Deadbolt operated by thumb-turn from inside only; blind rose on the outside

Finishes

Standard Finishes

32_squareA
32 Bright Stainless Steel
32D_squareA
32D Satin Stainless Steel
10B_squareA
10B Oil Rubbed Bronze

CeraMax Finishes

C19G_squareA
C19G Graphite Black
C19_squareA
C19 CeraMax Flat Black
CDB_squareA
CDB Dark Bronze
CGY_squareA
CGY Stormy Gray

Not all finishes are standard with each lever. Custom finishes including CeraMax are available with MOQ and extended lead times.
