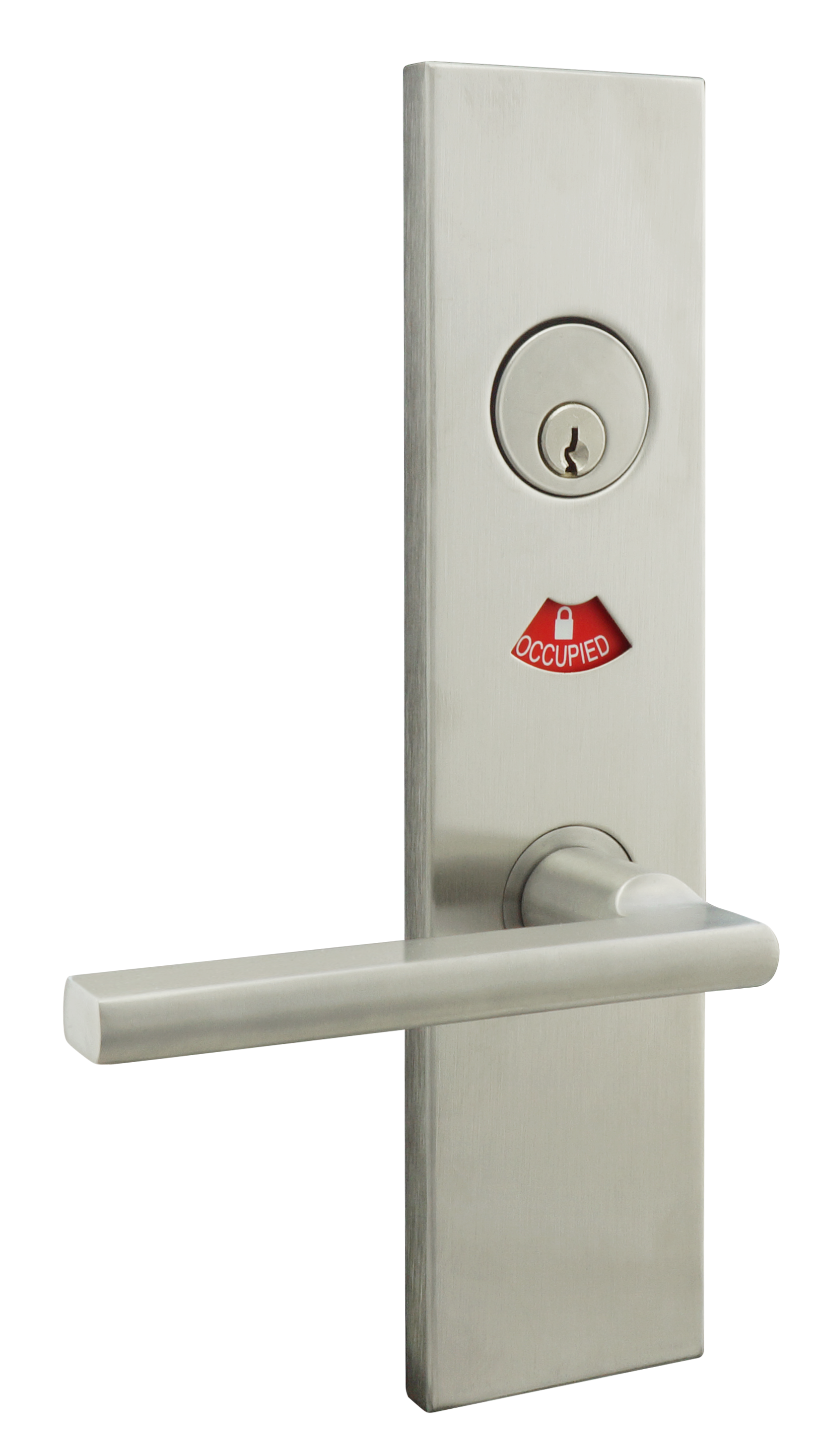

c - cylinder with Fan (occupied)

SF Plate with Fan Indicator

For MC7000 Mortise Locksets

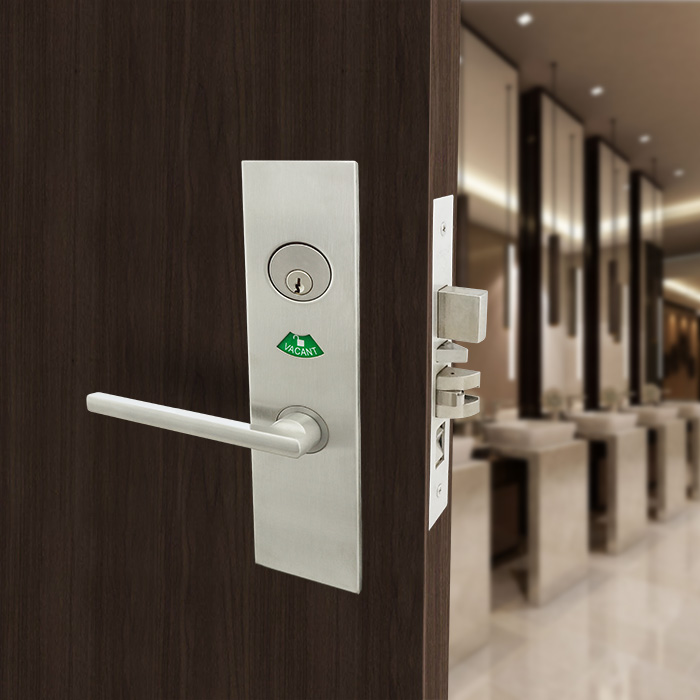

SF Indicator Glamour Image 1

Features

Coming soon! A perfect option to help reduce contamination with fewer touches in public door applications, the INOX SF plate with fan indicator communicates locked/unlocked status with high contrast red and green colors and large text for easy identification.

Available in both SW (Single Window, exterior Indicator only) or DW (Double Window, exterior and interior Indicator)

Easy retrofit to upgrade currently-installed MC7000 Series locks.

Data Sheet
Installation Instructions

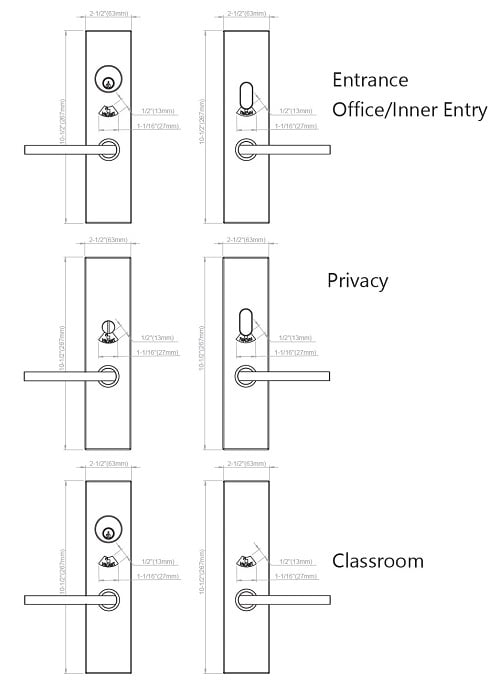

Fan Indicator LDs Version 3

Specifications

Dimensions: 10-1/2" x 2-1/2" x 7/16" Rectangle
Materials: Stainless Steel
Indicator Windows:
SW - Exterior Indicator only
DW - Exterior and Interior Indicators

Functions

Indicator Privacy

Privacy w/Indicator & Coin Turn
MC7096 (ANSI: F22)

  • Latchbolt operated by lever from either side (passage function) unless outside lever is locked by inside thumbturn
  • Outside lever unlocked by inside thumbturn, operating inside lever, closing open door (to prevent locking from outside) or emergency coin turn release
  • Indicator is green and reads VACANT when outside lever is unlocked; red and OCCUPIED when locked
  • Indicators visible on either side of door
  • Inside lever is always free for emergency egress
Indicator Office-Inner Entry

Office/Inner Entry with Indicator
MC7050 (ANSI: F04)

  • Latchbolt operated by lever from either side except when outside lever locked by thumbturn or key
  • When outside lever is locked, latchbolt retracted by key outside or by inside trim
  • No deadbolt; auxiliary latch deadlocks latchbolt
  • Indicators visible on either side of door
  • Inside lever always free for immediate egress
Indicator Entrance

Entrance with Indicator
MC7438

  • Latchbolt operated by lever from either side
  • Deadbolt operated by key outside or thumbturn inside
  • Key outside operates both deadbolt and latchbolt
  • Operating inside lever retracts bolts
  • Auxiliary deadlocks latchbolt when door is closed
  • Indicators visible on either side of door
  • Inside lever always free for immediate egress
Indicator Classroom

Classroom with Indicator
MC7070 (ANSI: F05)

  • Latchbolt operated by lever from either side except when outside lever locked by key
  • When outside lever is locked, latchbolt retracted by key and outside lever or by inside lever
  • Auxiliary latch deadlocks latchbolt when door is closed
  • Indicators visible on either side of door
  • Inside lever is always free for immediate egress

Finishes

Standard

32 swatch lever 221
32 Bright Stainless Steel
32D swatch lever 221
32D Satin Stainless Steel
10B swatch lever 221
10B Oil Rubbed Bronze
19G swatch lever 221
19G Graphite Black
PVD4 swatch lever 221
PVD4 Satin Brass

CeraMax

C19G swatch lever 221
C19G Graphite Black
C19 swatch lever 221
C19 CeraMax Flat Black
CDB swatch lever 221
CDB Dark Bronze
CGY swatch lever 221
CGY Stormy Grey

Not all finishes are standard. Custom finishes including CeraMax are available with MOQ and extended lead times may be neccesary.
