TL7 B

TL7 Magnetic Latch for Tubular Interior Leversets

A powerful magnetic latch that eliminates the need for lip strikes and door frame lip cut-outs, the TL7 is applicable with all INOX decorative lever, knob, and escutcheon designs

Features

A new aesthetic option for homeowners or designers who want to eliminate unsightly or scratched, marred lip strikes, the TL7 is a perfect choice for frameless and flush-to-wall doors.

The TL7 magnetic latch is part of the interior leverset and available in both 2-3/8" (60mm) and 2-3/4" (70mm) backset.

For passage, privacy, or half passage functions, TL7 latch, bolt, and strike  incorporate neodymium rare earth magnets, the most powerful magnet available for commercial use .

No special modifications required to use TL7  tubular magnetic latch with any INOX lever, knob, or escutcheon design.

Meets ANSI A117.1 Accessibility (ADA Compliant).

Downloads

Data Sheet
Installation

Templates:
  1. RA/SE/SH
  2. GA/GT/GS


TL7 SE221 19G Glamour Quiet Study square

Specifications

Door Thickness: 1-3/8" (35mm) to 1-3/4" (44mm)
Latch Backset: 2-3/8" (60mm) or 2-3/4" (70mm)
Edge Bore: 1" Edge Bore, Latch face 2-1/4" x 1" square
Handing: Latch is field reversible; specify for Half Passage or Passage with Privacy Bolt
Lever Spindle: 8 x 8mm square
Lever Action: 28 degree

Compliance

INOX leversets with TL7 magnetic latches unlock or unlatch the door with only a 28 degree turn, ergonomically easy to use and ADA compliant (complies with no grasp, no pinch rule.)

Watch the video!

The TL7 is a quantum leap forward from old-fashioned mechanical latches that require a metal strike's lip to guide and force the bolt into the door when it's being closed.

The TL7 bolt stays at home in the door until the door is closed, and then the bolt is silently and instantly pulled into the strike with a powerful magnet.

TL7_callout_open_retracted
Open Position
Latch bolt is completely retracted when the door is open, providing improved path of access.
TL7_callout_closed_latch_out
Closed Position
When door is closed, rather than a lip strike forcing the bolt into the strike, a powerful rare earth magnet instantly and quietly snaps the bolt in place to latch the door.

Functions

L461_TL4_Latch

Passage L761 and L771

  • Door self-latches when closed
  • Both levers always unlocked
L462_TL4_Latch

Privacy L762 and L772

  • Door self-latches when closed
  • Door locks when privacy pin is pushed from inside
  • Unlock latch by turning inside lever or by emergency release from hole on outside of rose cover
L465_TL4_Latch

Half Passage L765 and L775

  • Outside lever always unlocked; inside, dummy rose only
  • Used on pantry or closet if there is no room for an inside lever
  • No egress. Do not select this option for spaces in which person could get trapped inside room
TL7_Explod-o

Parts List

  1. Outside Rose
  2. Outside Lever
  3. Sub-rose
  4. Stabilizing Bracket
  5. Spindle
  6. Interior Bracket
  7. Sub-rose
  8. Inside Lever
  9. Inside Rose
  10. Privacy Pin (for Privacy function)
  11. Screws
  12. Set Screw
  13. TL7  Magnetic Latch
  14. Latch Faceplate
  15. FP Screws
  16. Strike Screws
  17. Strike Faceplate
  18. Magnetic Dust Box

Rose & Escutcheon Options

INOX Designer Levers and TL7 latches can be paired with gorgeous roses and plates to coordinate design across your entire property.

RA243 32 C

RA Rose

2-1/2" (63mm) diameter

Combine with INOX RD or CD Deadbolt for locking functions

SE243 32 C

SE Rose

2-3/8" (60mm) square

Combine with INOX SD or LD Deadbolt for locking functions

SH243-Plate-32-A

SH Plate

4-1/2" x 2-3/8"

Combine with any INOX Deadbolt for locking functions

GT243 32 C

GT Small Rose

Requires special door prep
2-1/16" (53mm) diameter

Combine with INOX GD Deadbolt for locking functions

GS243 32 C

GS Small Rose

Requires special door prep
2-1/16" (53mm) square

Combine with INOX HD Deadbolt for locking functions

Lever Options

All INOX designer levers are standard options for interior lock sets.

Finishes

Standard

32 swatch lever 221
32 Bright Stainless Steel
32D swatch lever 221
32D Satin Stainless Steel
10B swatch lever 221
10B Oil Rubbed Bronze
19G swatch lever 221
19G Graphite Black
PVD4 swatch lever 221
PVD4 Satin Brass

CeraMax

C19G swatch lever 221
C19G Graphite Black
C19 swatch lever 221
C19 CeraMax Flat Black
CDB swatch lever 221
CDB Dark Bronze
CGY swatch lever 221
CGY Stormy Grey

Not all finishes are standard. Custom finishes including CeraMax are available with MOQ and extended lead times.

TL7_Award_Slider

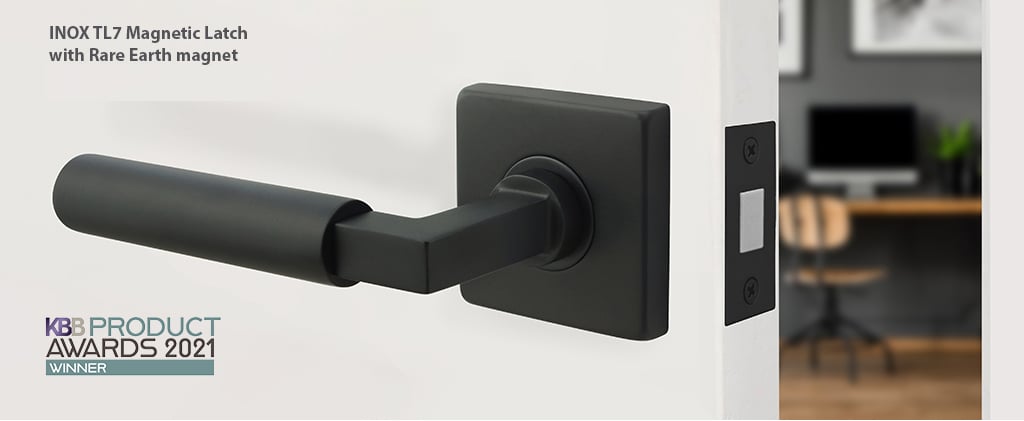

KBB PRODUCT AWARD WINNER 2021
