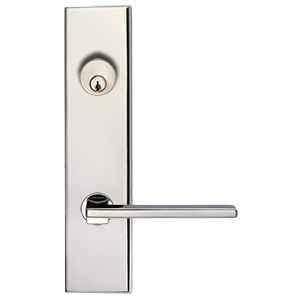

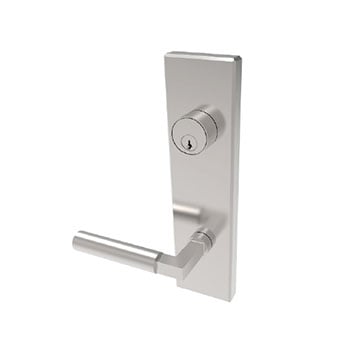

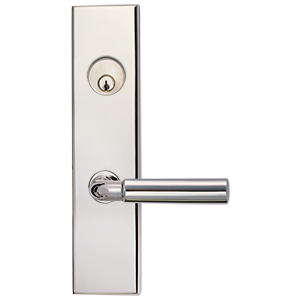

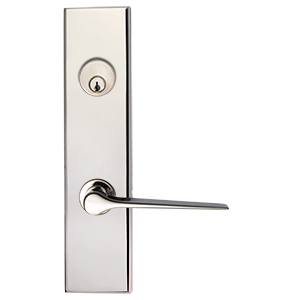

XSF Exit Device Trim

Lever: Select from X Series Levers
Cylinder: 1-1/8" Mortise Cylinder

For RIM, SVR, LBR:
Plate Height: 10-9/16" (268mm)
Plate Width: 2-3/4” (70mm)
Plate Depth: 27/32" (21.5mm)

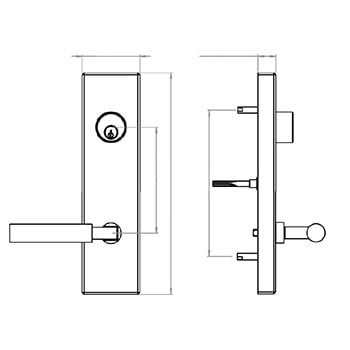

Center to Center:
Installation: 7" (177.5mm)
Cylinder to Lever: 5-1/16" (128mm)

For Concealed Vertical Rod (CVRM/CVRW):
Plate Height: 10-9/16" (268mm)
Plate Width: 2-1/2” (64mm)
Plate Depth: 7/8" (23mm)
Center to Center:
Installation: 6-1/2" (164.5mm)
Cylinder to Lever: 3-3/8" (85.6mm)

For MED:
Information coming soon!
