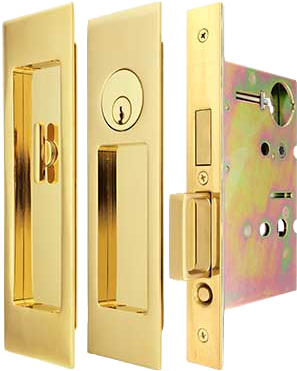

PD8000 PVD4 trim and lockcase

PD8000

Mortise Lock for Sliding & Pocket Doors

A beautiful option for single and pairs of sliding doors, with designer INOX flush and surface pulls in a variety of stunning finishes

Features

The INOX PD8000 Series takes sliding door locks to a level never before achieved in the industry. In addition to a variety of options and functions, beautifully designed and crafted materials, and nine stock finishes to accent and complement any décor, INOX has introduced a series of patented improvements to mortise door locks, as well as stunning options for thin doors in our Slim Trim and Concealed Fixing trim.

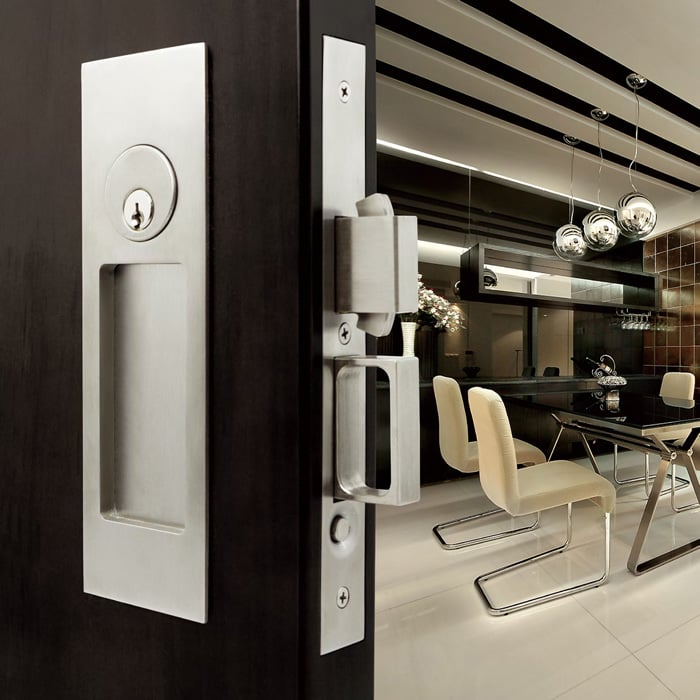

FH27 Linear Flush Pull

Specifications

Door Thickness, Standard Trim: 1-3/4" (45mm)
Thick door kits available
Backset: 2-3/4" (70mm), 2-1/2" (64.5mm), 2" (51mm)
Lock Case: 3-21/32" x 6" x 11/16" (93mm x 152mm x 17mm)
Deadbolt: 1" (25.4mm)
Bolt Projection: 5/8" (15.5mm)
Bolt Case Size: 3-1/4" x 3-5/8" x 1"
Thumbturn Spindle: 5 x 5mm square
Handing: Non-handed
Cylinder: Schlage C keyway, 5 pin mortise cylinder with 2 keys; specialty keying services available

PD8000_Bullet-2
Flush Pulls
INOX flush pulls provide the functions you need for privacy, entrance, or passage with your PD8000 locks, and are available in the most beautiful finishes in the industry, with Slim Trim options for thin doors.
PD8000_Bullet
Surface Pulls
Built from top quality stainless steel materials, INOX pulls offer excellent performance in strength, durability, safety, and corrosion resistance - and are designed beautifully.

Functions

LD-PD8010

Passage with Lockcase
PD8010

  • Used as flush pull or matching trim on pairs of doors
  • Edge finger pull operated by push button
LD-PD8015

PD8115
Passage with Lockcase as
Dust-proof Strike

  • Lockcase used as dust-proof strike on inactive side of pair of doors
  • Edge finger pull operated by push button
LD-PD8440

Privacy with Emergency Release
PD8440

  • Deadbolt operated by inside thumbturn or outside emergency coin turn release
  • Edge finger pull operated by push button
LD-PD8450

Entry with Single Cylinder
PD8450

  • Key outside or thumbturn inside retracts deadbolt with hook
  • Edge finger pull operated by push button
LD-PD8460

Patio
PD8460

  • Deadbolt operated by thumbturn from inside only
  • Edge finger pull operated by push button
LD-PD8215

Passage with Lockcase as
Dust-proof Strike
PD8215

  • Lock case used as dust-proof strike on inactive side of pair of doors
LD-PD8340

Privacy with Emergency Release
PD8340

  • Deadbolt operated by inside thumbturn or outside emergency coin turn release
LD-PD8350

Entry with Single Cylinder
PD8350

  • Key outside or thumbturn inside retracts deadbolt
LD-PD8360

Patio
PD8360

  • Deadbolt operated by inside thumbturn only

Options

PHIX45714_surfacepulls

Surface Pulls

INOX stainless steel surface pulls are as beautiful to the sight as to the touch, and are available in a variety of beautiful finishes

FH2700 32 300x300

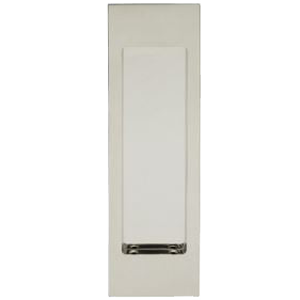

Flush Pulls

INOX stainless steel flush pulls are just the right touch to any décor. Beautifully designed and crafted, with nine finishes in stock to accent and complement your home or office

FH12PD2062-32D-2

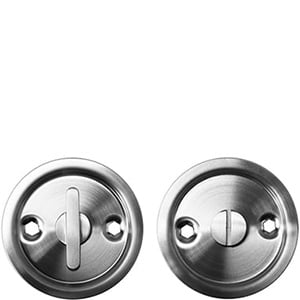

Flush Thumbturns

Flush pulls offer a choice of two functional thumbturn designs, with many more options for surface pull trim, including ADA compatible thumbturns and indicator windows

CMB106_Cylinder

Cylinders

Explore mortise cylinder and IC core options, plus keying services and more.

Finishes

Standard Finishes

32_squareA
32 Bright Stainless Steel
32D_squareA
32D Satin Stainless Steel
10B_squareA
10B Oil Rubbed Bronze
19G_squareA
19G Graphite Black
PVD4_squareA
PVD4 Satin Brass

Ceramax Finishes

C19G_squareA
C19G Graphite Black
C19_squareA
C19 Flat Black
CDB_squareA
CDB Dark Bronze
CGY_squareA
CGY Stormy Grey

Not all finishes are standard. Custom finishes including CeraMax are available with MOQ and extended lead times.
